Manufacturer Part Number:
DS3
Watt:
880
Input Voltage (Vdc):
60 Vol
Output Voltage (Vac):
240 Volt
Phase:
1-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.97

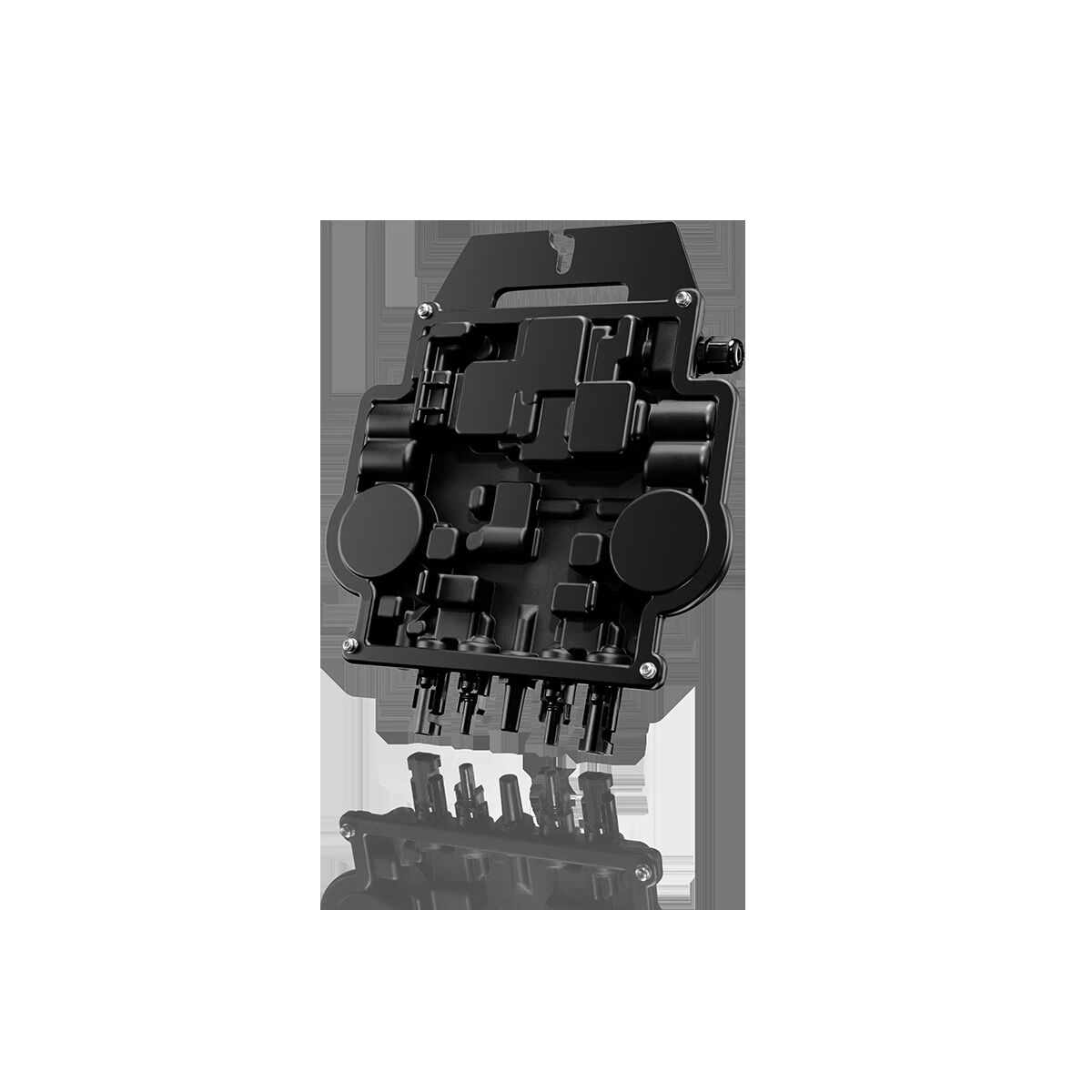

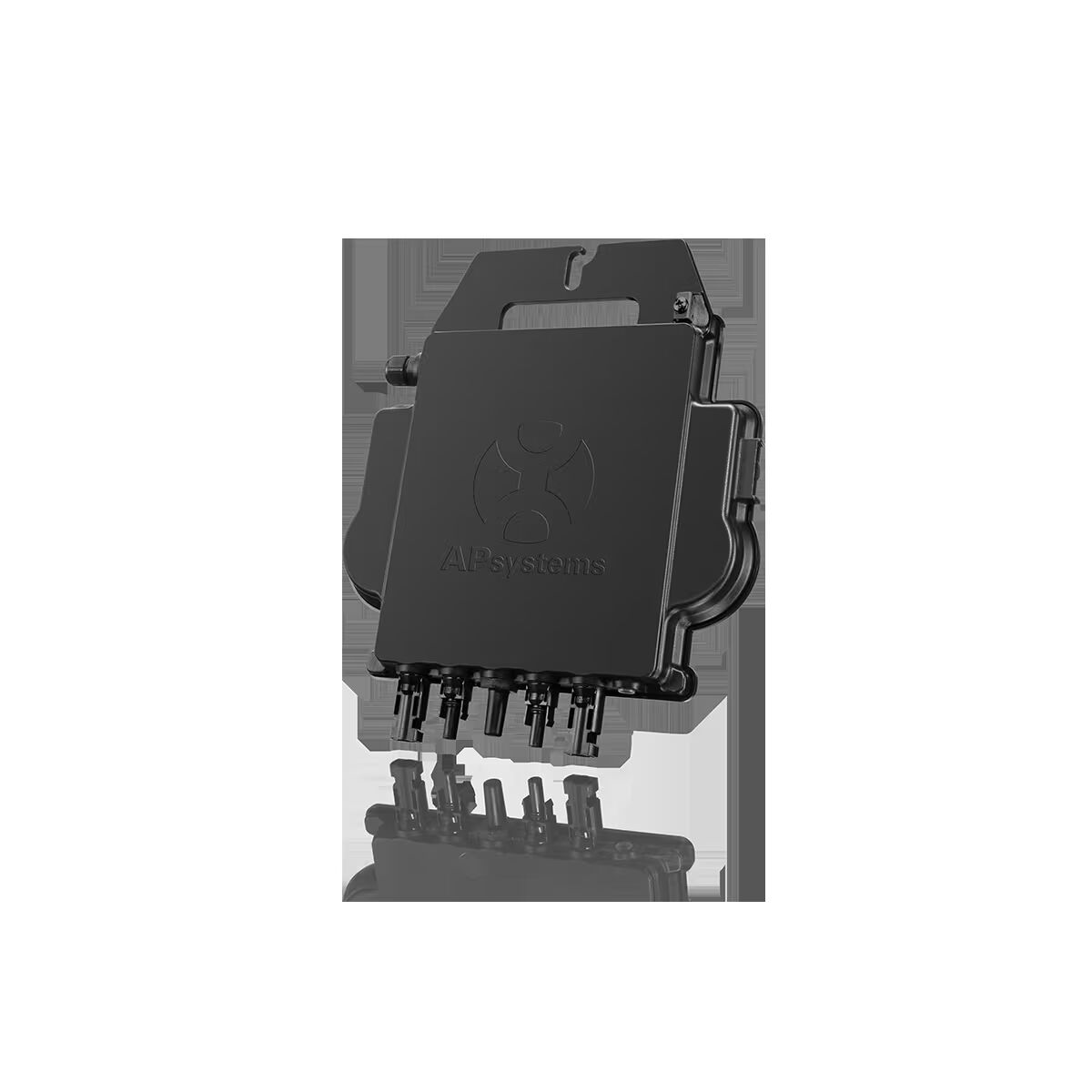

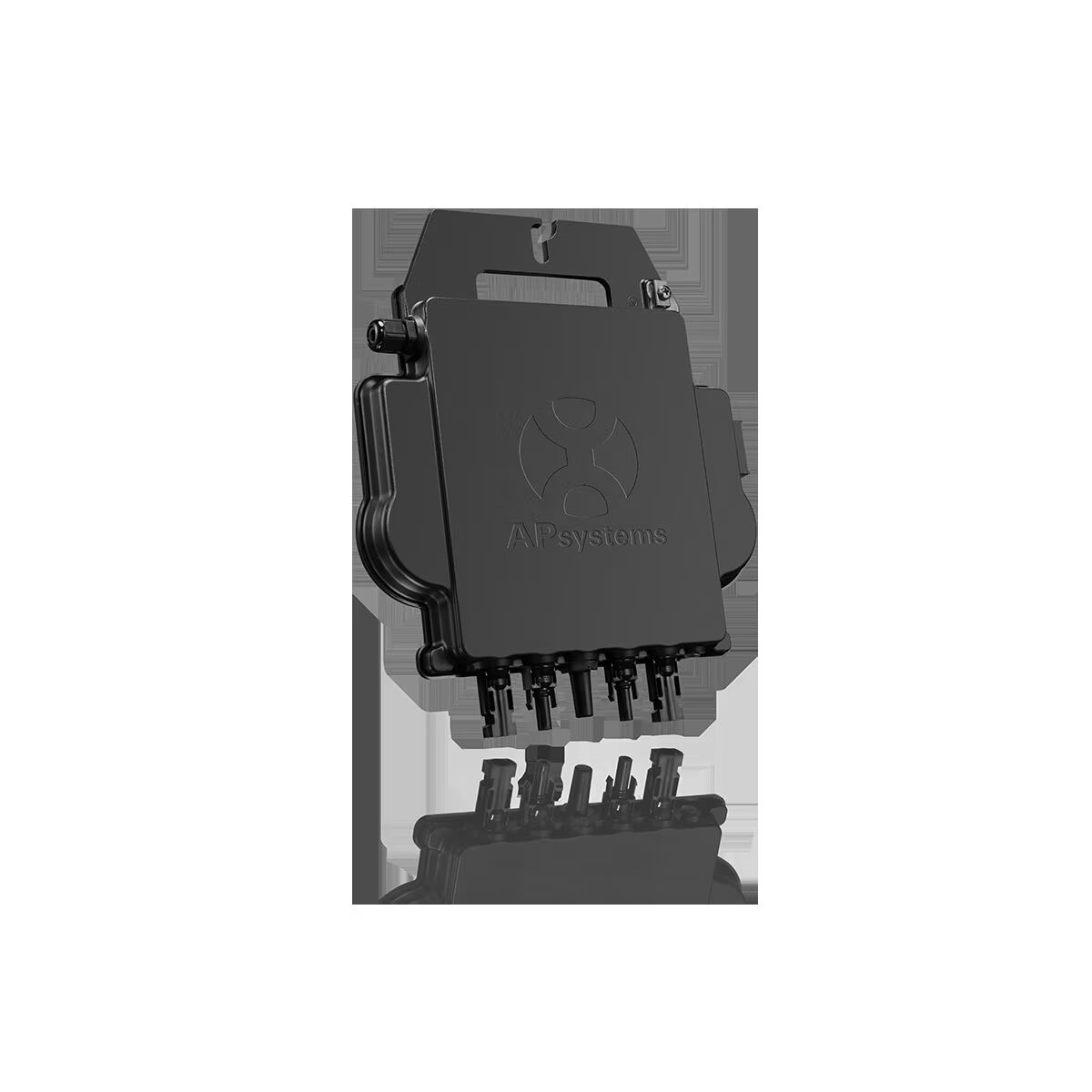

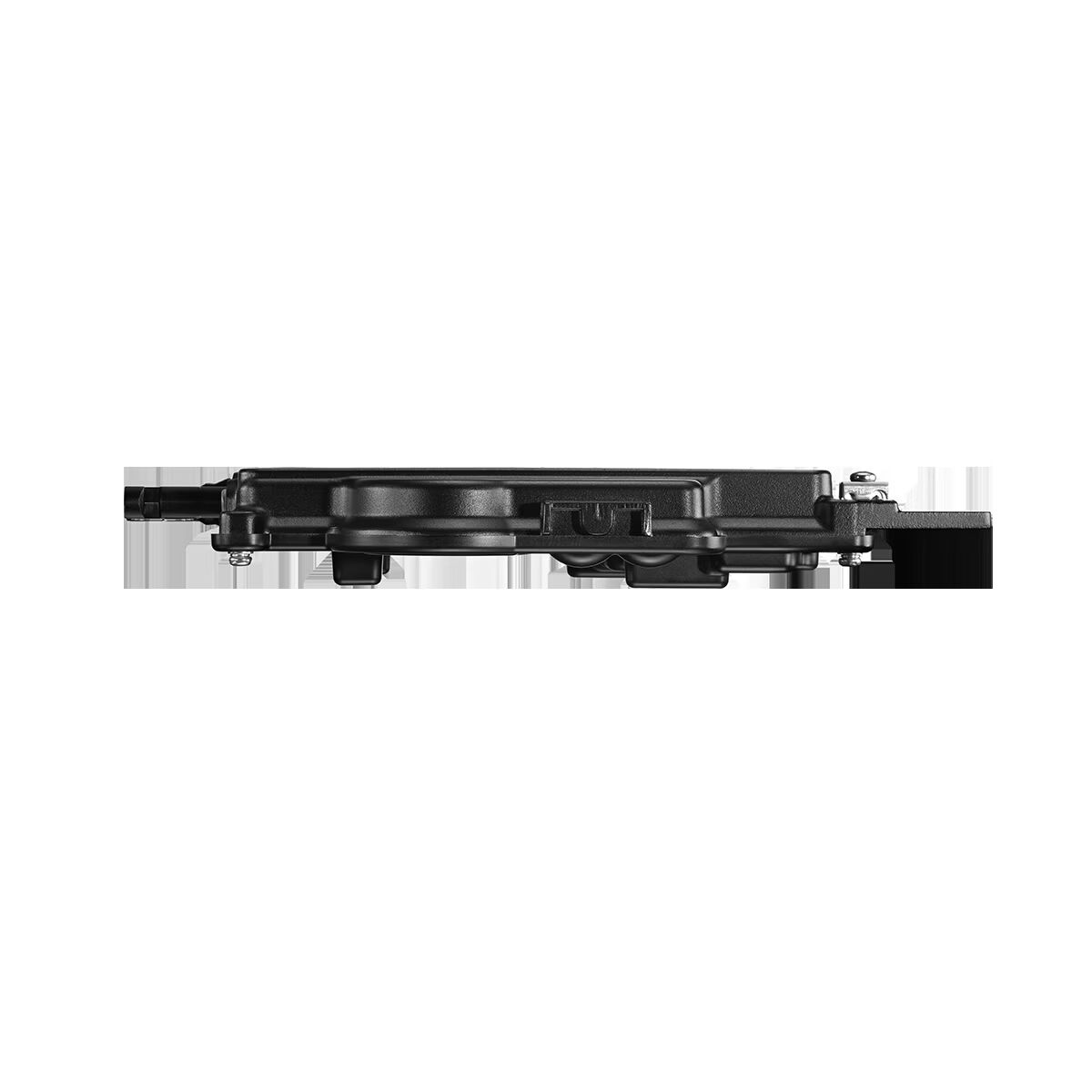

APsystems’ 3rd generation of dual-module microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.
The DS3 series reaches unprecedented levels of power output and is fully backwards compatible with QS1 and YC600 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication.
An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.
The DS3 series is grid-interactive and fully compliant with CA Rule 21 requirements. With its unparalleled performance, efficiency of 97%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.
Key Features
One microinverter connects to two solar modules
Max output power reaching 880 VA
Two independent input channels (MPPT)
CA Rule 21 (UL 1741 SA) compliant
NEC 2020 690.12 Rapid Shutdown Compliant
Encrypted Wireless Zigbee Communication
