Manufacturer Part Number:
YC1000-3-208
Watt:
1000
Input Voltage (Vdc):
60 Volt
Output Voltage (Vac):
208 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.955

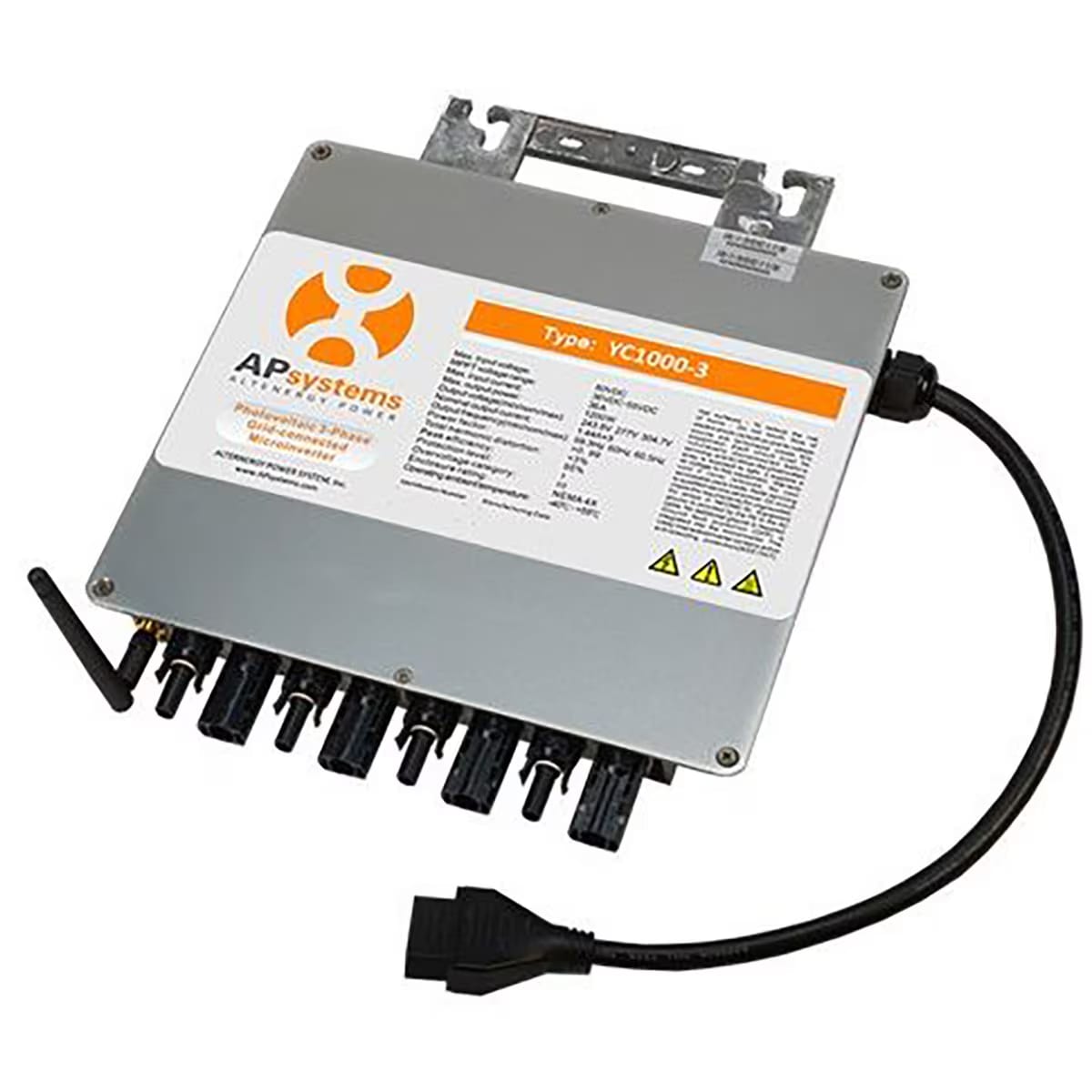

The YC1000 is the industry’s first true 3-phase (phase-balanced & phase-monitored) solar microinverter, handling 277Y/480V grid voltages with 900 watts maximum output, ZigBee and an integrated ground. Up to 11 units (44 modules total, 60- or 72-cell) can be linked in a single 15A circuit. This groundbreaking technology is only available from APsystems.
Manufacturer Part Number: YC1000
Max. Continuous Power Output: 1130W
Output Voltage Range: 120/208V
Maximum Units per Branch: 4units per 15A x 3 AC breaker or 5units per 20A x 3 AC breaker
AC Bus Maximum Current: 20A (14AWG)
Connector Type: MC4
Peak Efficiency: 95.5%
Compliance: Meets NEC2014/2017 690.11, 690.12
Shipping weight: 7.7 lb
Shipping dimensions: 10.2 x 9.5 x 1.4 in
Box Qty: 5
