Technical Details
Manufacturer Part Number:
ENCHARGE-3T-1P-NA

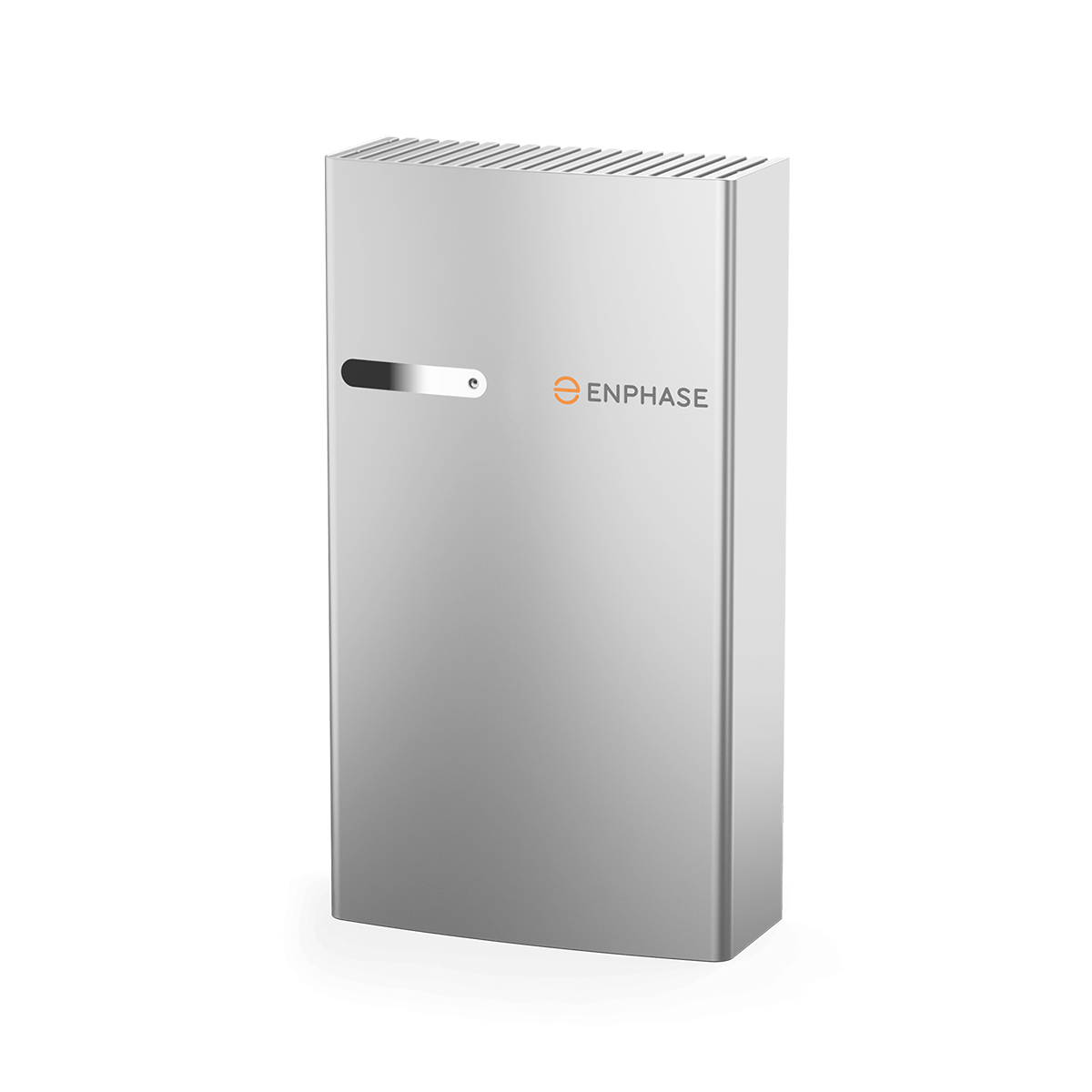

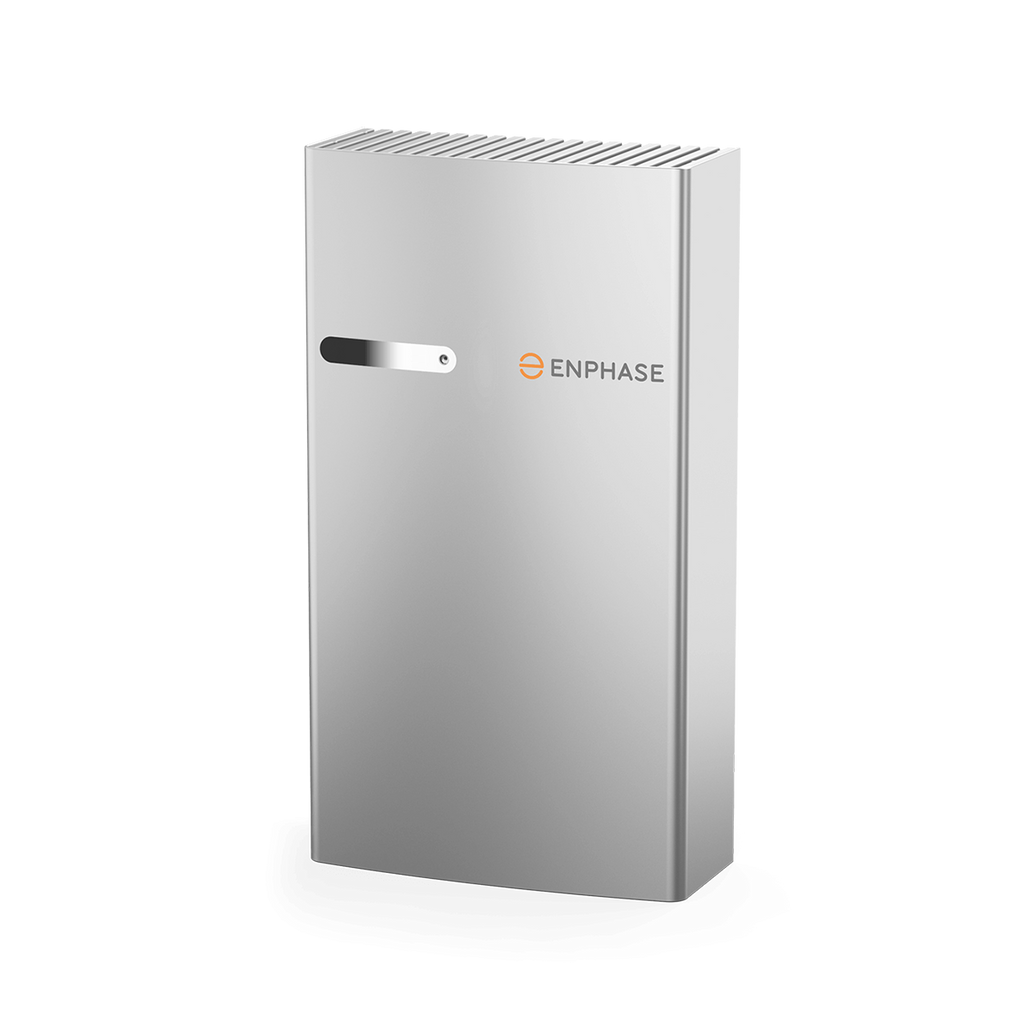

The Enphase ENCHARGE-3T-1P-NA IQ Battery 3T all-in-one AC-coupled storage system is reliable, smart, simple, and safe.
It has a total usable energy capacity of 3.36 kWh and includes four embedded grid-forming microinverters with 1.28 kW power rating. It provides backup capability and installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.
Product Features
Fully integrated AC battery system
4 embedded IQ8X-BAT Microinverters
Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Quick and easy plug-and-play installation
Remote software and firmware upgrades
Grid-forming capability for backup operation
Mobile app-based monitoring and control
Support for self consumption
Utility time of use (TOU) optimization
Technical Specifications
Power rating: 1.28 kW
Energy capacity: 3.36 kWh
Peak output power: 1.92 kVA
Rated output power: 1.28 kVA
DC round trip efficiency: 96%
AC round trip efficiency: 89%
Compatibility
IQ Battery
IQ Series Microinverters
IQ System Controller
Wireless Communication Kit
IQ Combiner
M Series Microinverters
