Technical Details
Manufacturer Part Number:
EP-NA-LK02-040

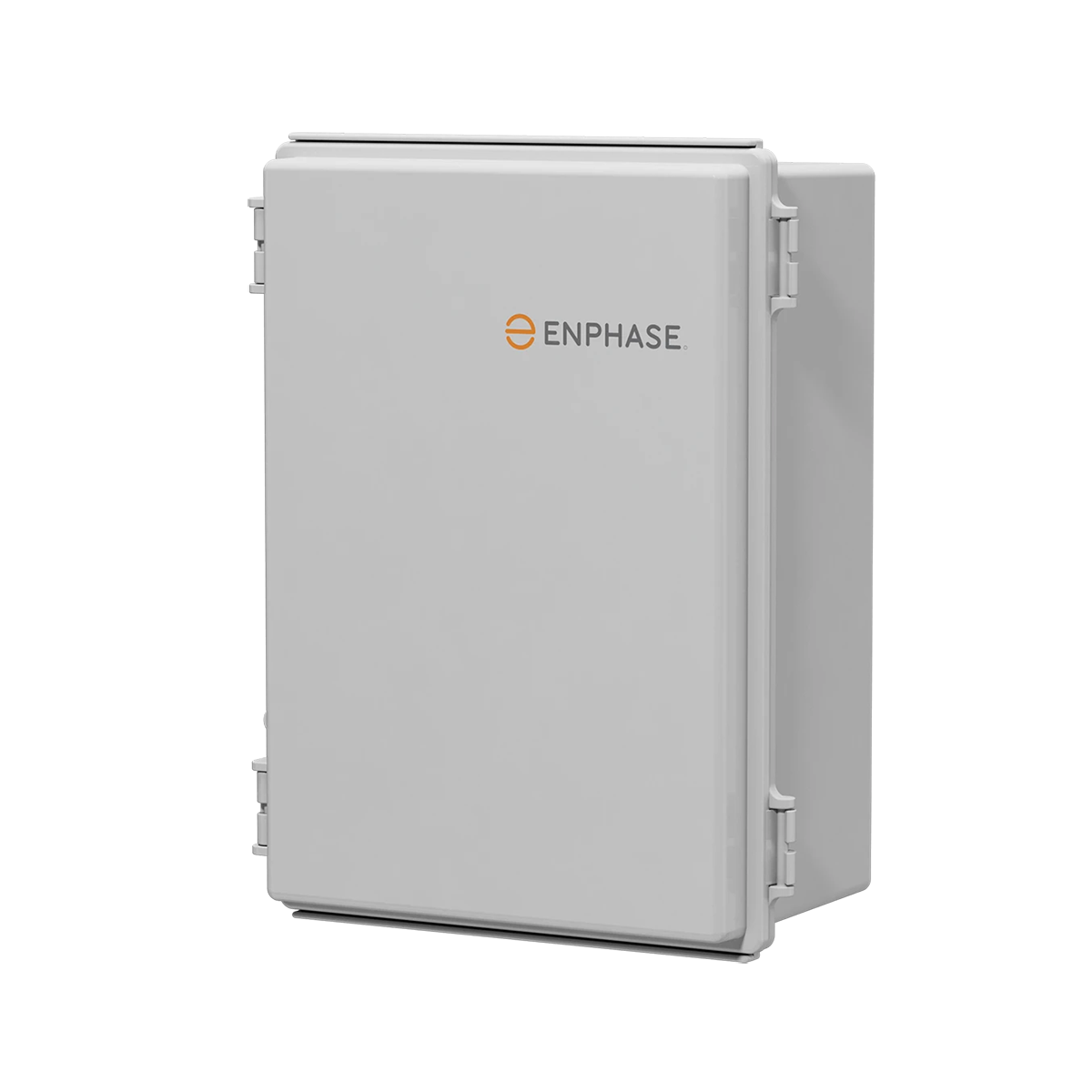

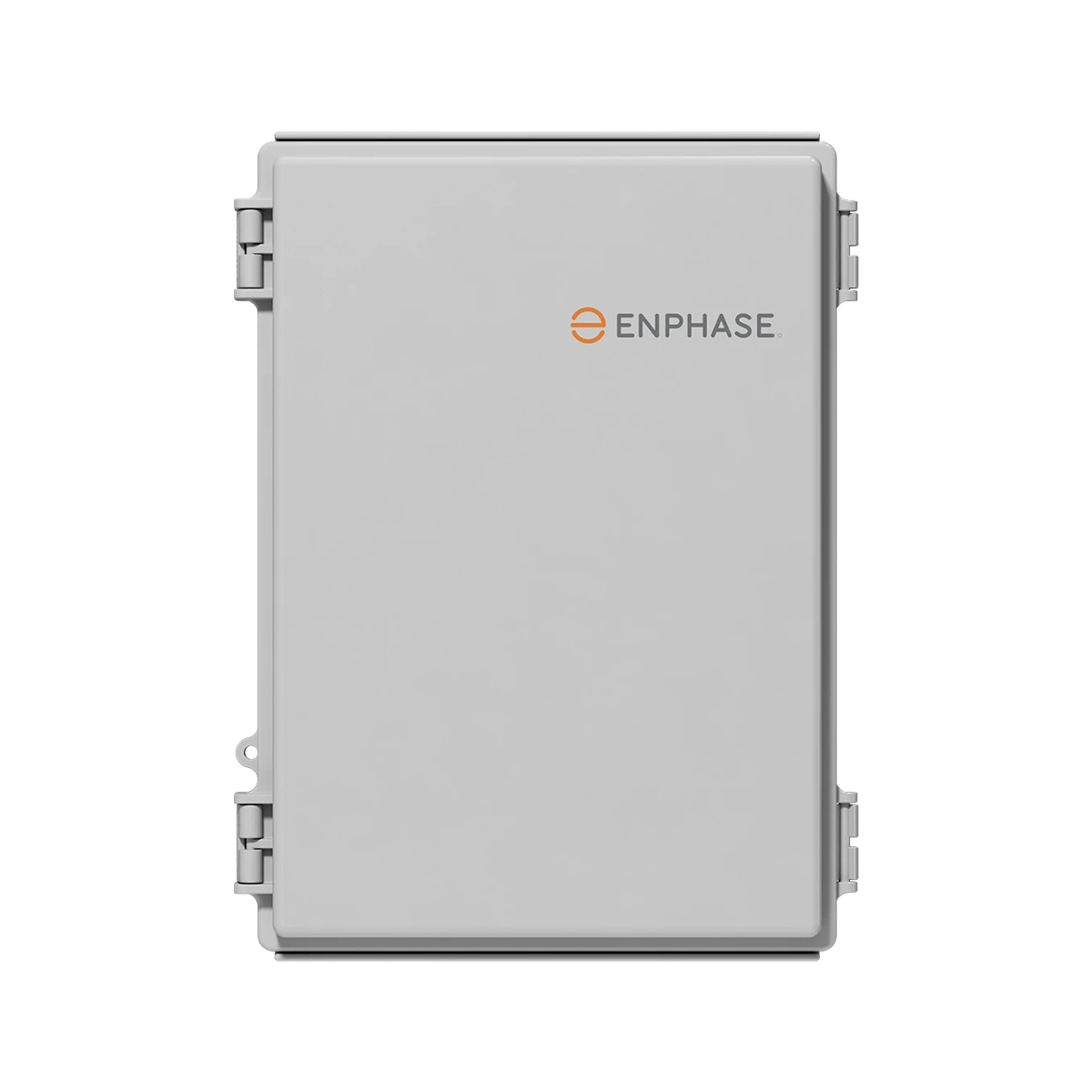

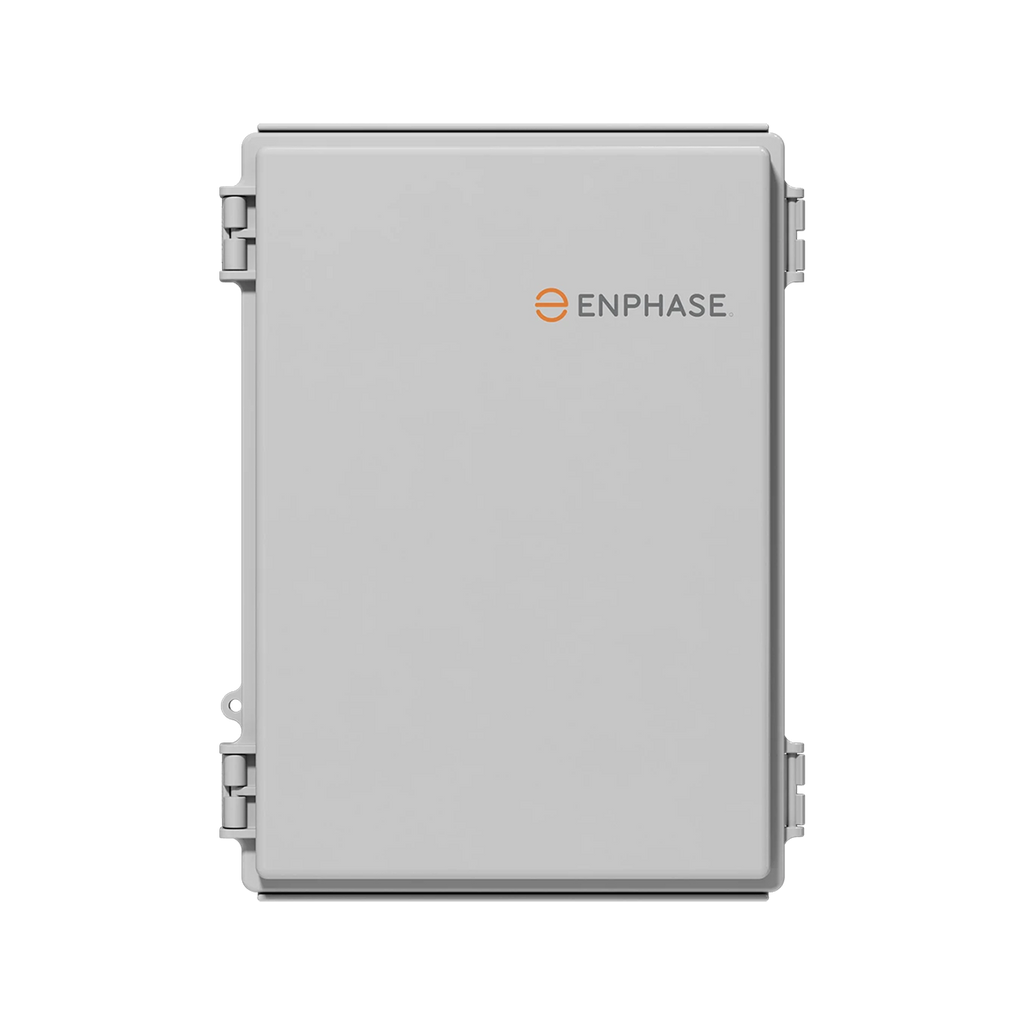

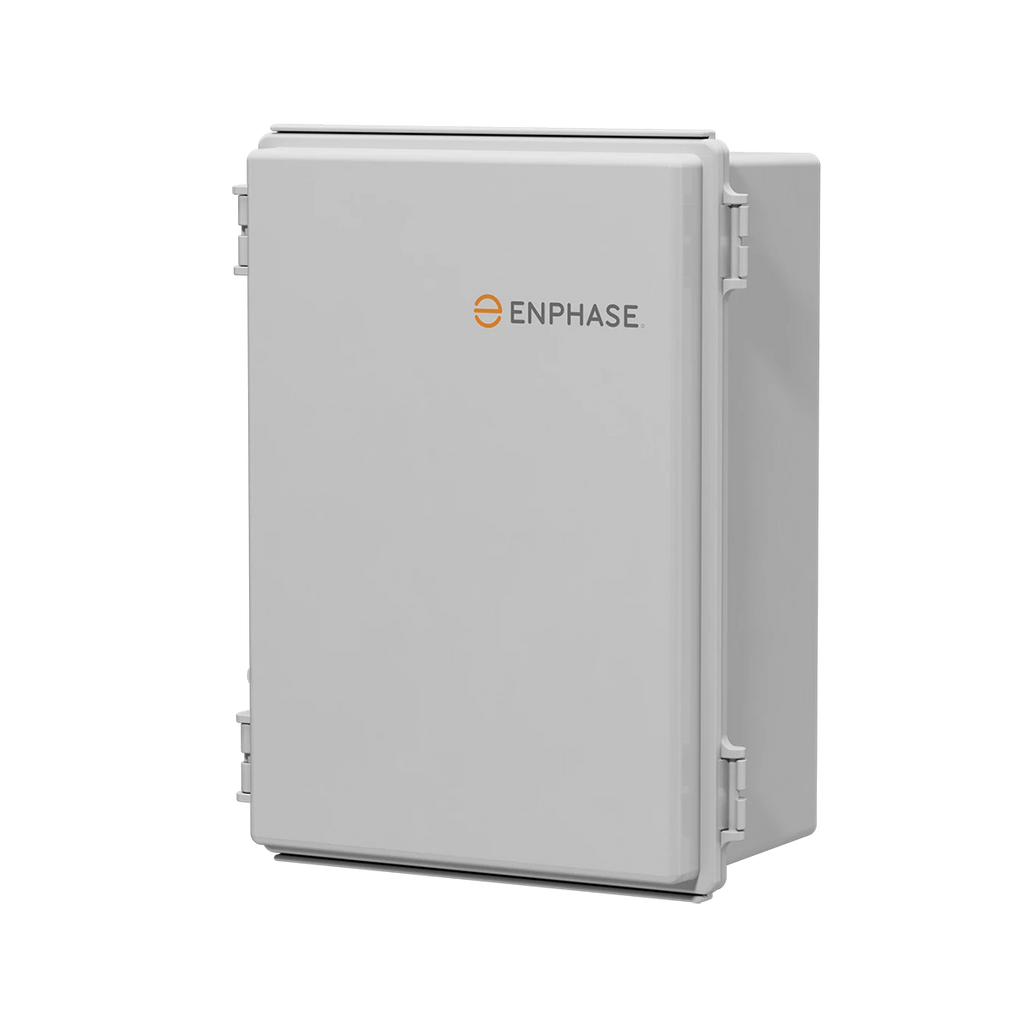

The IQ Load Controller is a complete solution to use the load control feature of the IQ System Controller.
Using the IQ Load Controller helps power your critical loads for a longer time when off-grid by shedding non-essential loads, or can help ensure right solar-to-storage ratio for an off-grid system.
This product can be used to control two 36 A dedicated loads or two 32 A branches or solar circuits.
The DIN rail design enables easy installation and servicing.
Warranty
5-year limited warranty
Product Details
Control up to two 36 A resistive loads, three HP/25 A inductive loads running at 240 VAC, or four loads running at 120 VAC
Shed up to two excess IQ6 Series, IQ7 Series, M215, or M250 solar branch circuits (up to 32 A each) to maintain solar-to-storage ratio when off-grid
Prioritize essential appliances during a grid outage to optimize energy consumption and prolong battery life
Choose from three load control modes for flexibility or manually control loads from the Enphase App
A complete solution for use with the IQ System Controller load control feature
DIN rail-mounted components enable easy installation and servicing
Easy configuration via the Enphase Installer App
Designed for indoor or outdoor installations
Compatibility
IQ Battery
M Series Microinverters
IQ Microinverters
IQ System Controller
IQ Combiner
IQ Gateway
