Technical Details
Manufacturer Part Number:
EN-EP200G-SC2-RSD-KIT

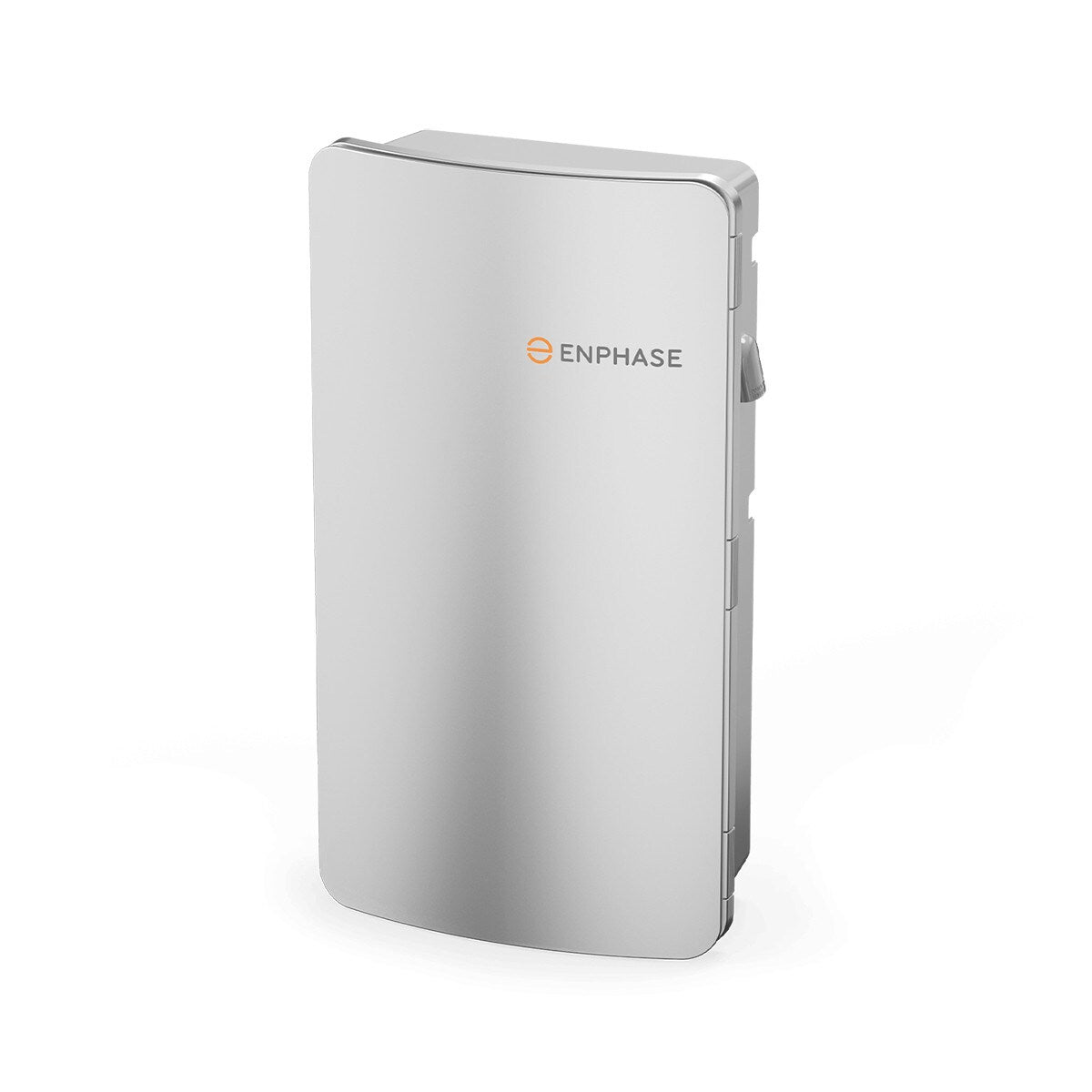

The Enphase IQ System Controller 2 connects the home to grid power, IQ Batteries, and solar PV with support for IQ8 Series Microinverters.
Use IQ System Controller 2 for all new installs using IQ8 Series Microinverters.
IQ System Controller 2 provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV, storage, and generator installations by providing a consistent, pre-wired solution for residential applications.
Product Details
10-year limited warranty
Controls safe connectivity to the grid
Automatically detects grid outages
Provides a seamless transition to backup
Connects to the load or service equipment side of the main load panel
Centered mounting brackets support single-stud mounting
Supports conduit entry from the bottom, bottom left side, and bottom right side
Supports whole home and partial home backup
Includes neutral-forming transformer for split phase 120/240 V backup operation
Seamless integration with a compatible generator
When paired with a dedicated IQ Load Controller, homeowners have the ability to prioritize and direct power to critical loads in the event of a grid outage
Product Specifications
Breaker support: 200 A
Maximum continuous current: 160 A
Nominal voltage: 240 VAC
Compatibility
IQ Battery
M215 Microinverters*
M250 Microinverters*
IQ6 Series Microinverters*
IQ7 Series Microinverters*
IQ8 Series Microinverters*
*IQ System Controller 2 does not support mixing two different microinverter series (e.g., IQ7 and IQ8 Series)
