Manufacturer Part Number:
IQ8M-72-2-US
Watt:
325
Technical Details
Efficiency:
0.976

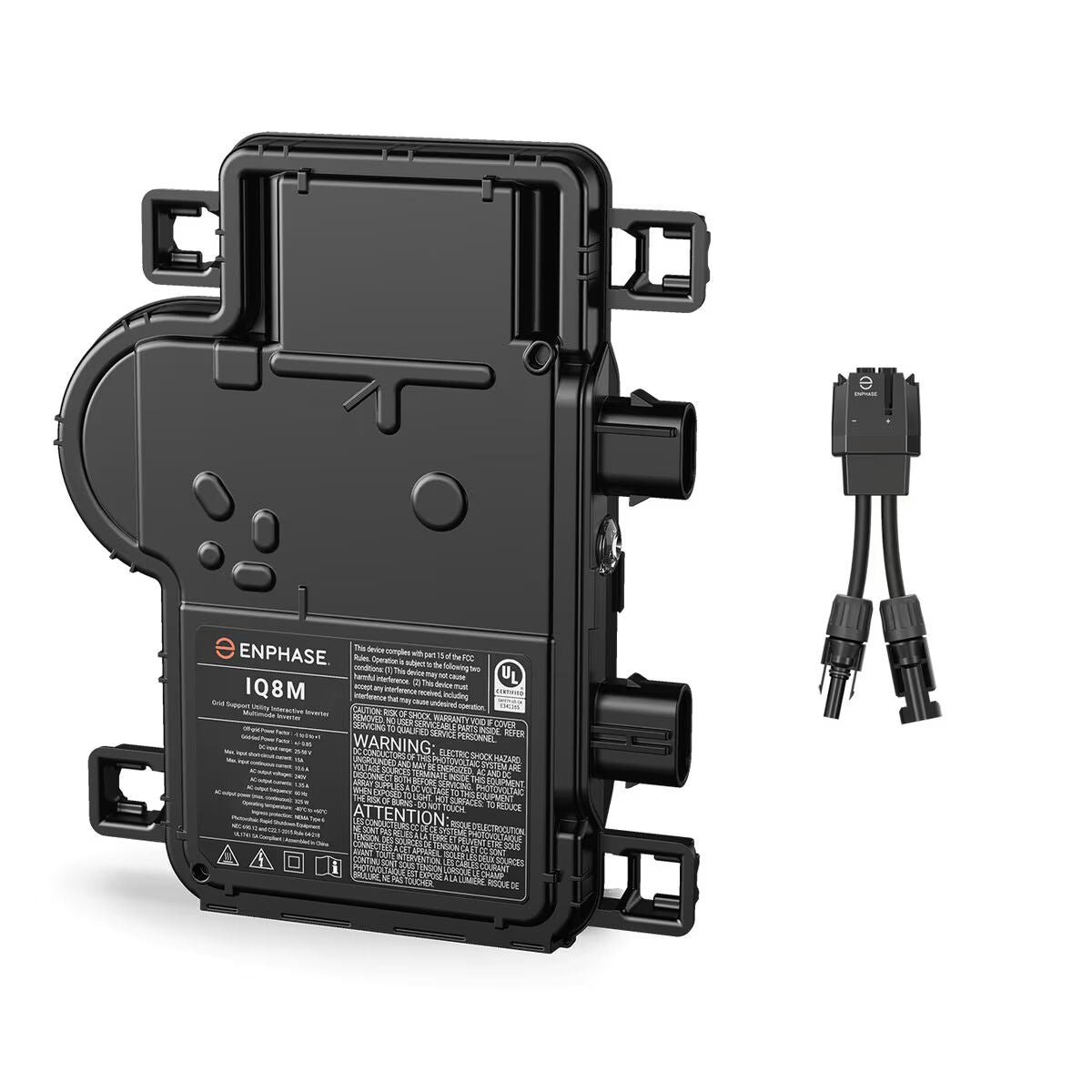

Our newest IQ8 Microinverters are the industry’s first microgrid-forming, software defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Manufacturer Part Number: IQ8M-72-2-US
Max. Continuous Power Output: 325W
Maximum Units per Branch: 13units
Connector Type: MC4
Peak Efficiency: 97.6%
Shipping weight: 2.38 lb
Shipping dimensions: 8.3 x 6.9 x 1.2 in
