Manufacturer Part Number:
EVO-2212
Watt:
2200
Input Voltage (Vdc):
24 Volt
Output Voltage (Vac):
120 Volt
Phase:
1-phase
Inverter Type:
Off-grid
Technical Details
Efficiency(%):
90

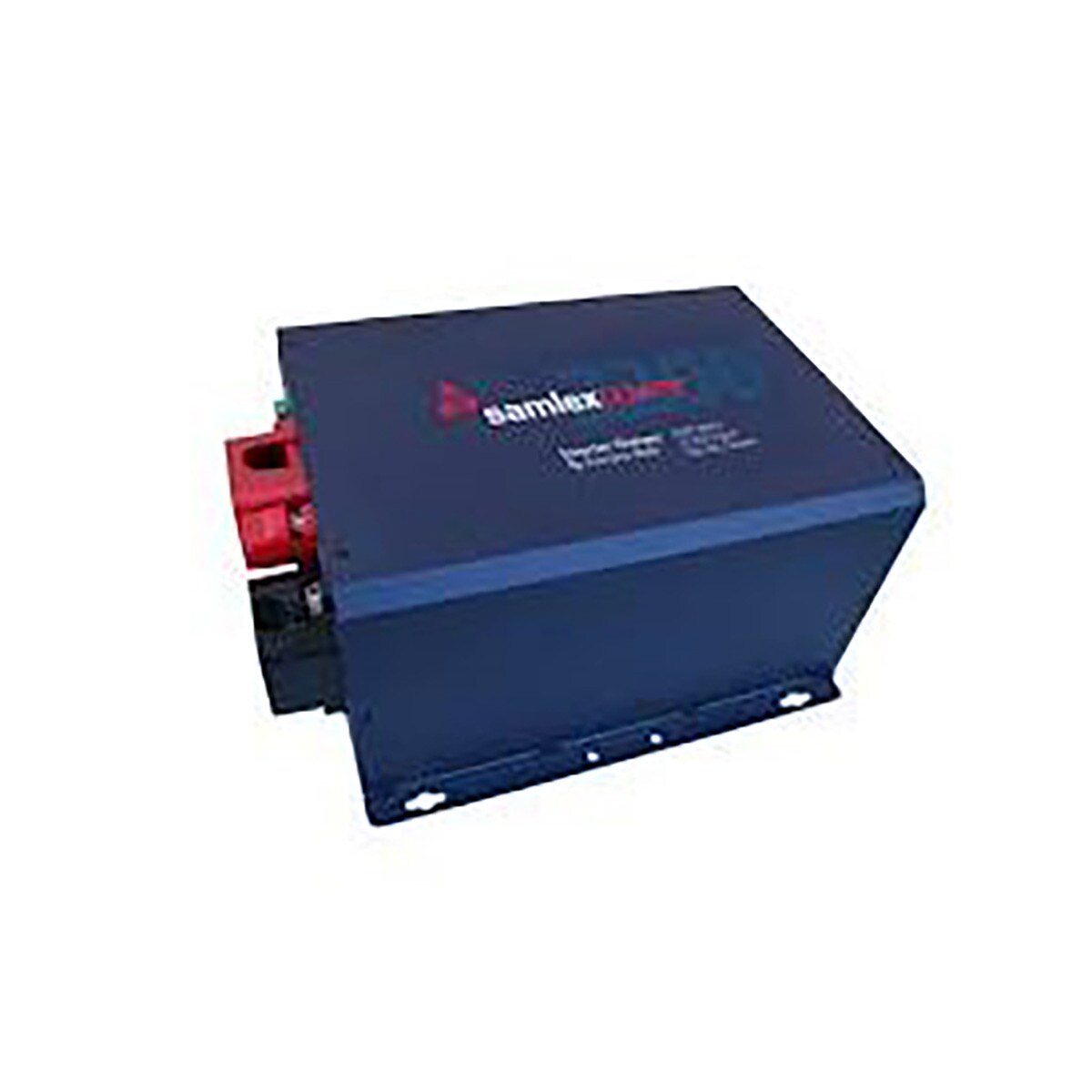

The EVO-2212 is a 2200 Watt Pure Sine inverter, 12 VDC input, 120 VAC output, 50/60 Hz. It intelligently integrates a 100 Amp 4 stage Battery Charger and a 40 Amp Transfer Relay into an advanced and affordable off-grid power solution.
Manufacturer Part Number: EVO-2212
Power: 2200VA
Input Battery Voltage Range: 9.1-17VDC
Output Voltage: 120VAC
Output Current: 18A
Max DC Input Current: 266A
Max Battery Charging Current: 50A
Peak Efficiency: 90%
Optional Remote Control: EVO-RC (Sold Separately)
Compliance: ETL listed for US and Canada
Shipping Weight: 59 lb
Shipping Dimensions: 12.79 x 16.77 x 8.15 in
