Technical Details
Manufacturer Part Number:
STI-FACET
sustainable technologies logo

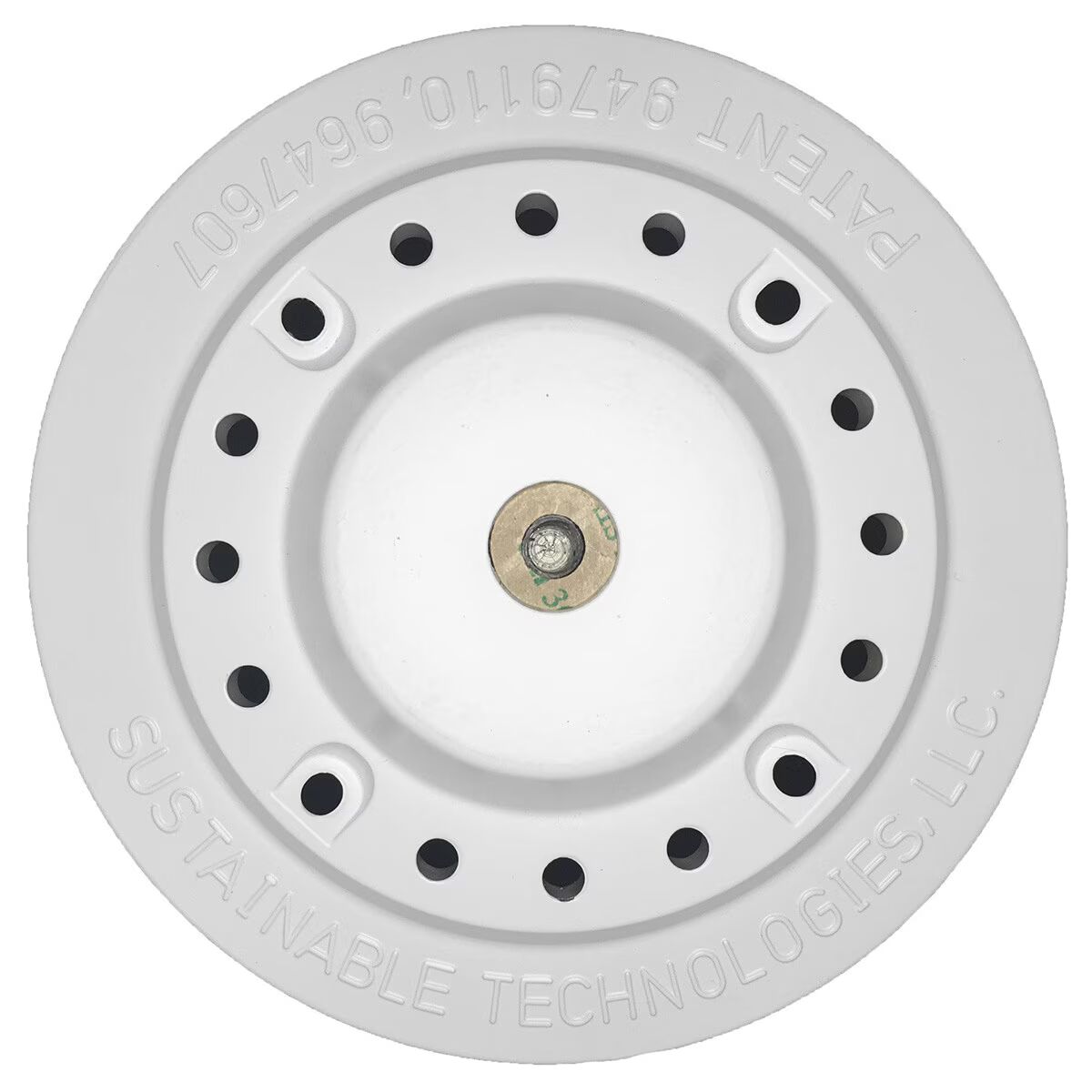

Sustainable Technologies' revolutionary FACET is a high strength flat roof equipment mounting disc with 3/8th" bolt receiver. Made of durable cast Aluminum with white powder coating for protection. Designed for fast and flexible roof equipment mounting. Facet can be installed without voiding roof material warranty when paired with appropriate FACET flashing option. Uplift Resistance rating: more than 5000 lbs. Shear Resistance rating: more than 4000 lbs. The Facet can be mounted vertically (on wall or roof parapet - pair with strut to mount inverters or other equipment) or horizontally (ideal option for ballast alternative or array parameter anchor). Does not include roof fasteners. Product Dimensions: 7.02" diameter x 1.01" height
Manufacturer Part Number: Facet
Shipping Weight: 1.2 lb
Shipping dimensions: 7 x 7 x 1 in
Box Qty: 28
