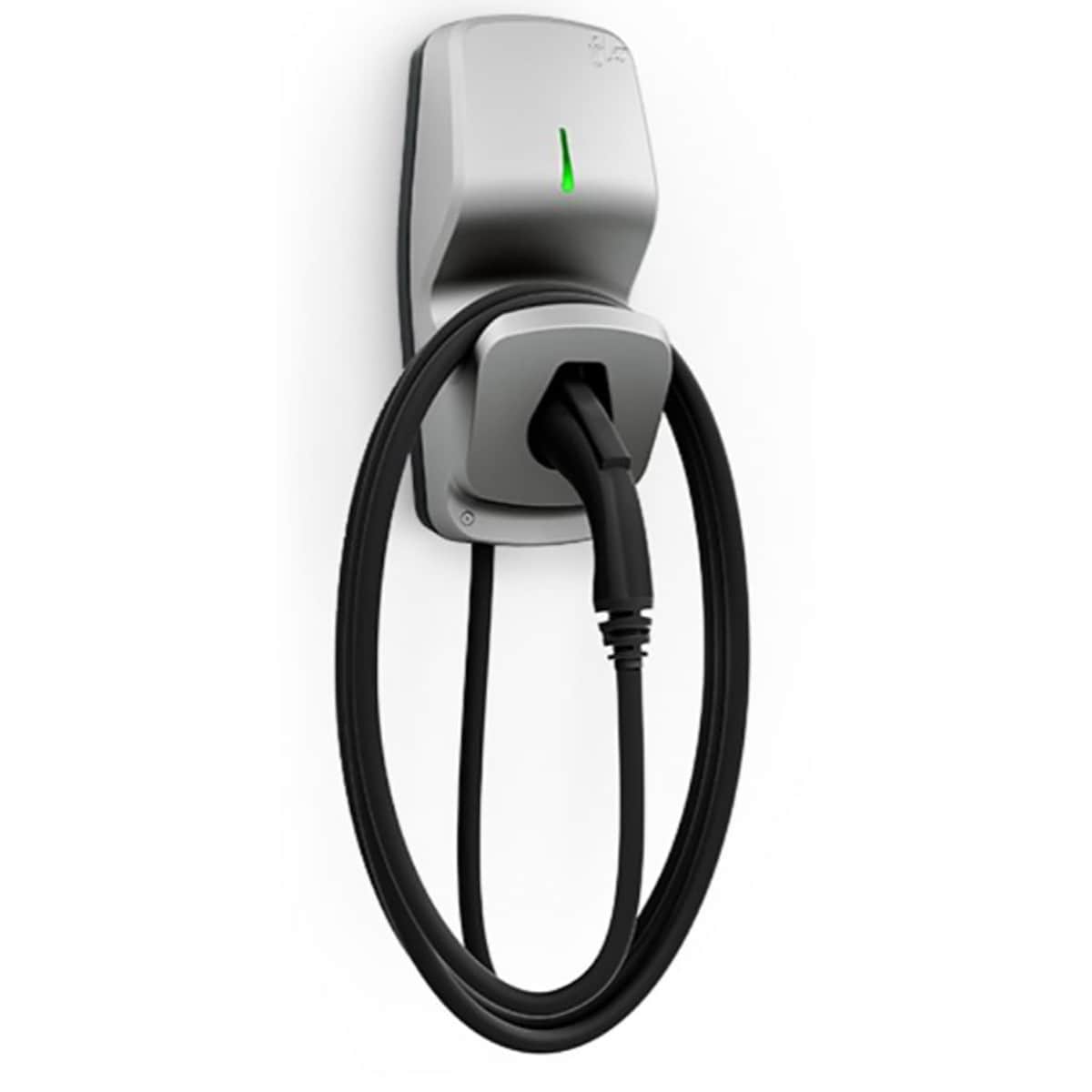

FLO FH-1-STA-X5-HY5N-FL1 X5 Level 2, 7.2kW, 30A EV Charger

The FLO Home™ X5 Level 2 charging station is specially designed for residential homes and is universally compatible with all models of electric and plug-in hybrid vehicles. It can easily be installed both indoors or outdoors and is built to withstand extreme weather conditions. The X5 is network-connected, which allows users to configure the units’ settings remotely and view usage data from a secure online portal.

Physical components
Casing: 100% aluminum 4X certified
Operating Temperature -40 °C to 50 °C/ -40 °F to 122 °F
IK10 impact resistant
Commercial Grade Flexible Cable: 25’/7.6m twisted steel
Integrated cable holder and connector receptacle
Finish: Nickel
Connector: SAE J1772TM, 25' cable
Wall bracket included
Weight: 24.76 lb/11.23 kg
5-Year limited warranty (US), 3-Year limited warranty (CA)

Electrical specifications
Hard wired (must be installed by a licensed electrician)
Voltage: 208-240 V @ 60 Hz
Output Current: 30A (Adjustable from 6 to 30A)
Charging power: 6.2 – 7.2 kW
Integrated GFCI 20 mA
Power sharing
Power line communication (PLC module included)

Compliance and certifications
ENERGY STAR certified
UL 2594
UL 2251
FCC 47 CFR part 152
