Manufacturer Part Number:
4210075800
Watt:
10000
Phase:
1-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.979

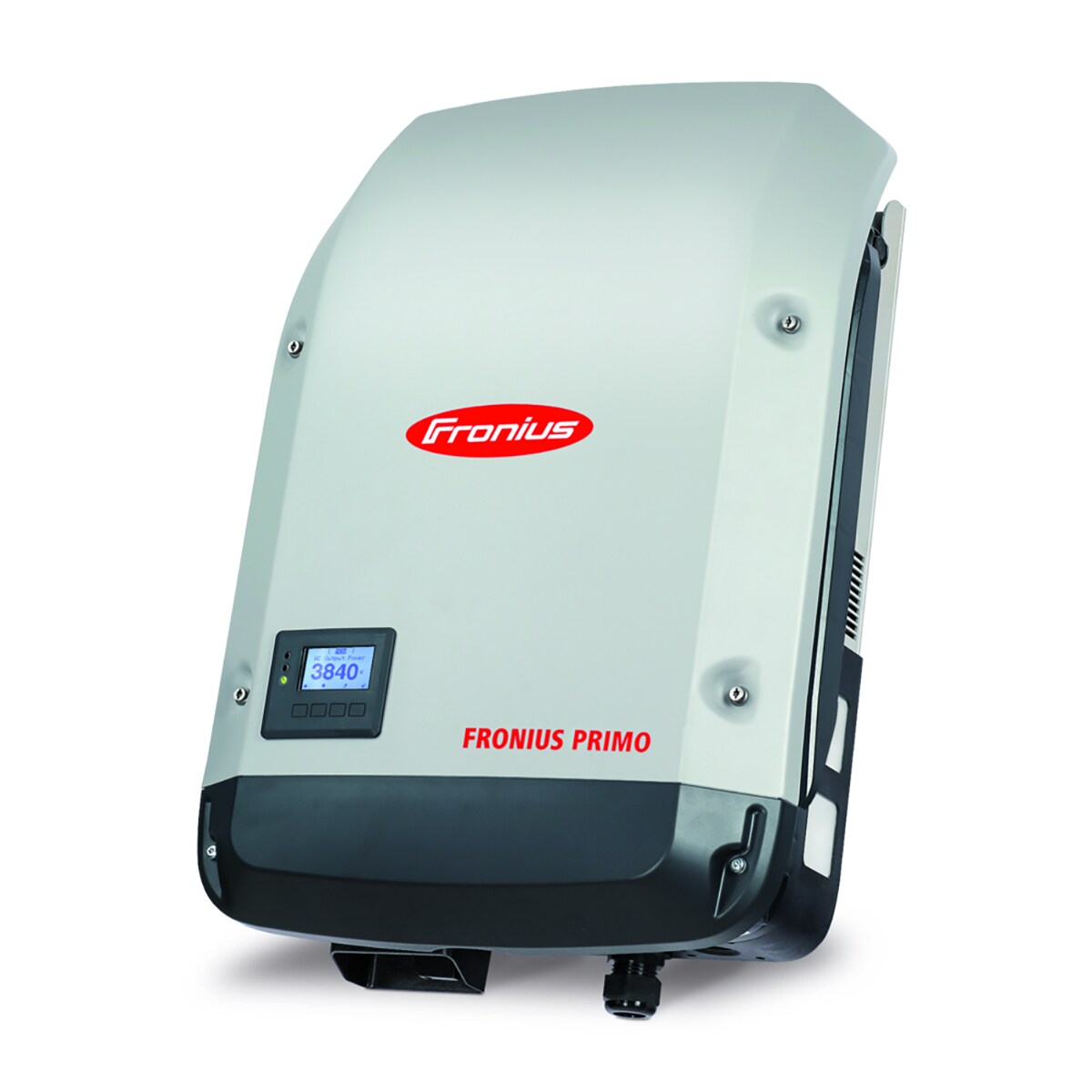

Fronius Primo 10.0-1 208-240, 10kW single phase, string inverter
Manufacturer Part Number: 4.210.075.800
Max. Output Power: 9995W@240 and 208V
Max. admissible input current (MPPT 1/MPPT 2): 49.5 A / 27.0 A
Maximum Output Current: 41.6A@240V and 48.1A@208V
Recommended OCPD/AC breaker size: 60A @240V and 208V
Peak Efficiency: 97.9%
Protective Devices: AFCI, Ground Fault Protection with Isolation Monitor Interrupter, DC disconnect, and DC reverse polarity protection.
Compliance: UL 1741-2015, UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690-2014, C22. 2 No. 107.1-01 (September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Shipping weight: 82.5 lb
Shipping dimensions: 20.1 x 28.5 x 8.9 in
Pallet Qty: 10
