Manufacturer Part Number:
4210060800
Watt:
8200
Phase:
1-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.979

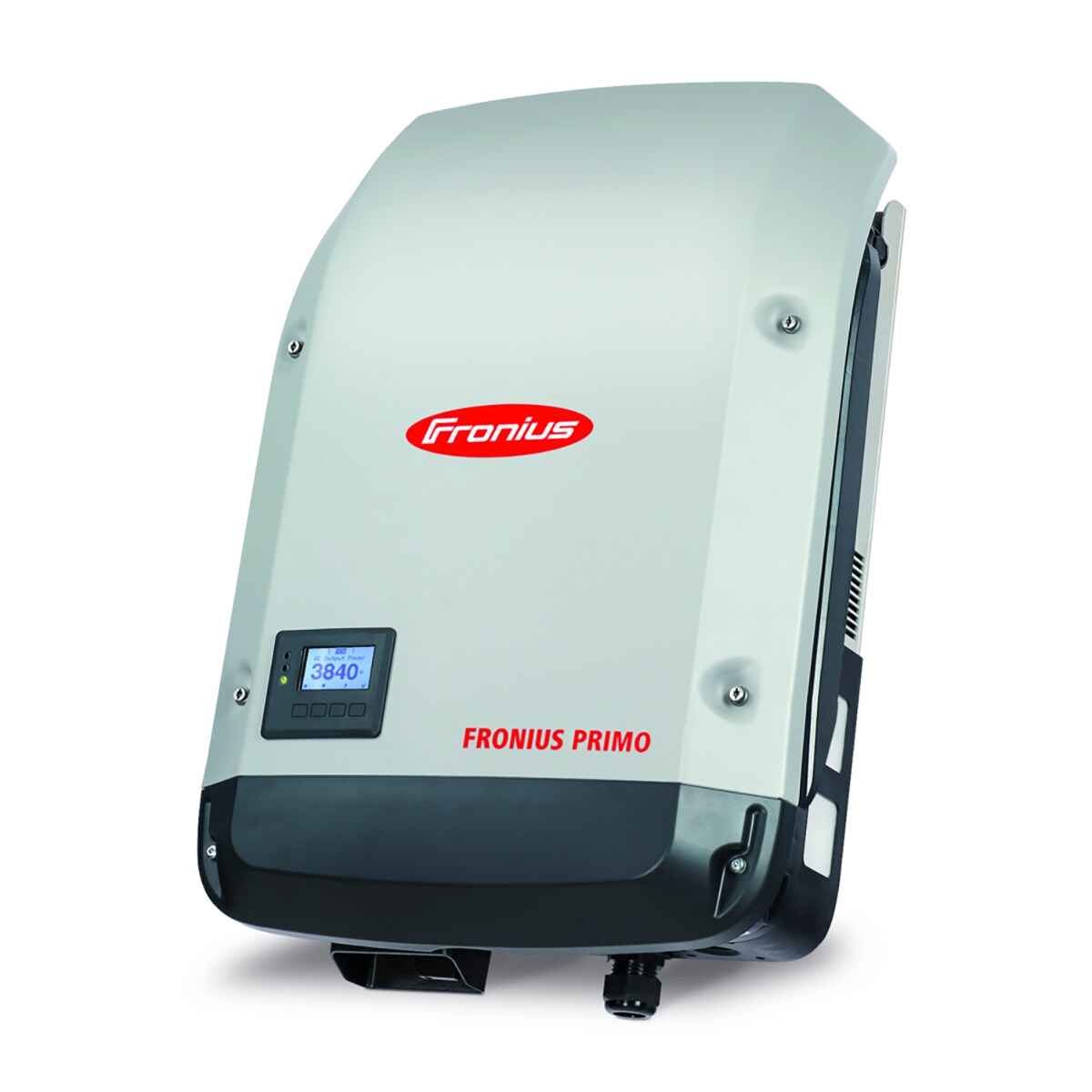

Fronius Primo 8.2-1 208-240, 8.2kW single phase, string inverter
Manufacturer Part Number: 4.210.060.800
Max. Output Power: 8200W@240V and 7900@208V
Max. admissible input current (MPPT 1/MPPT 2): 27.0 A
Maximum Output Current: 34.2A@240V and 38.0A@208V
Recommended OCPD/AC breaker size: 45A @240V / 50A @ 208V
Peak Efficiency: 97.9%
Protective Devices: AFCI, Ground Fault Protection with Isolation Monitor Interrupter, DC disconnect, and DC reverse polarity protection.
Compliance: UL 1741-2015, UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690-2014, C22. 2 No. 107.1-01 (September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Shipping weight: 48 lb
Shipping dimensions: 31 x 22 x 12 in
Pallet Qty: 10
