Product Details

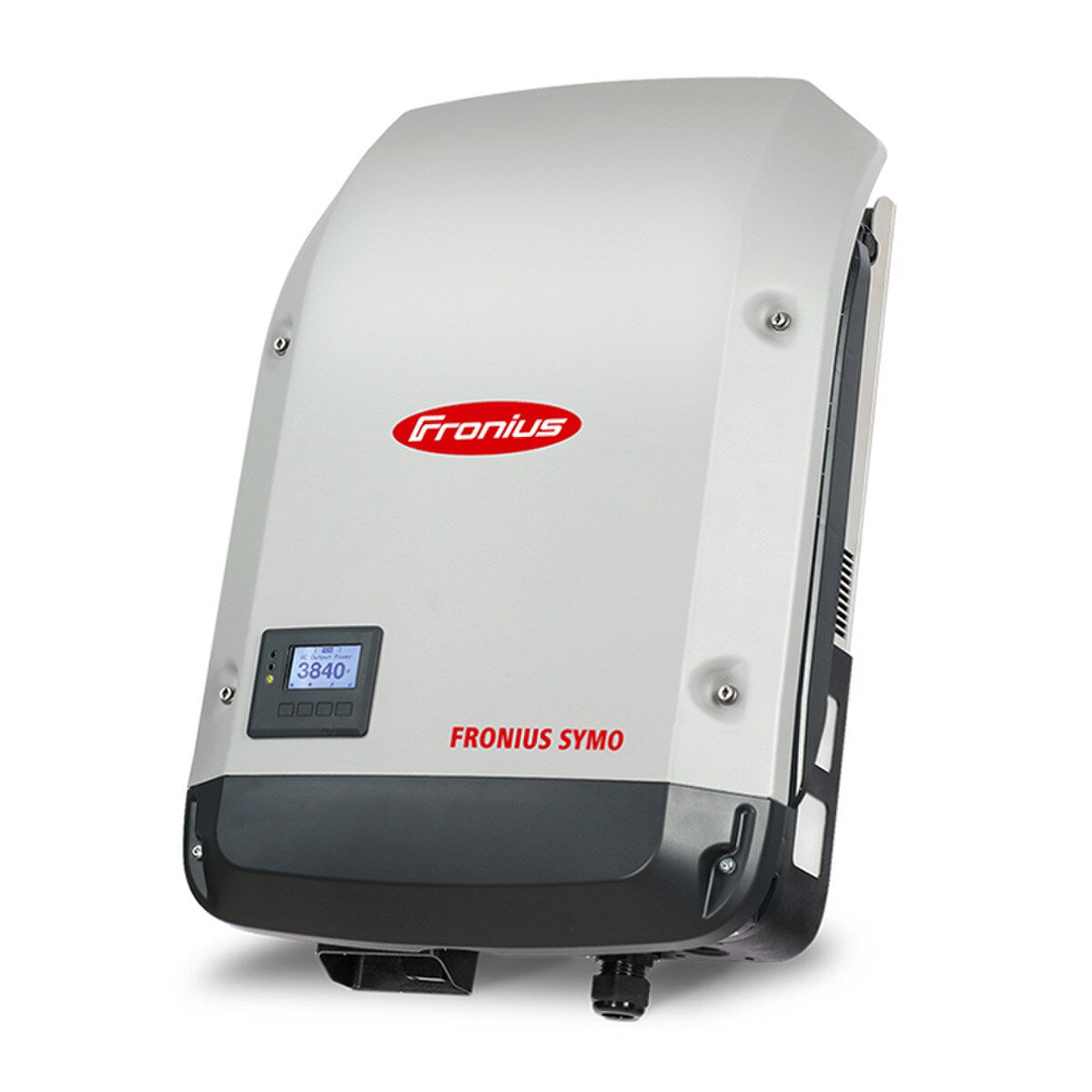

Fronius Symo 10.0-3 480 FULL
Fronius Symo 10.0-3 480 FULL
SKU: FRO-3110
Regular price
$2,830.15 CAD
Regular price
Sale price
$2,830.15 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
4210050800
Watt:
10000
Input Voltage (Vdc):
1000 Volt
Output Voltage (Vac):
480 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency (%):
98.1
The Fronius Symo inverter series has been specially developed for the demands of the North American market.
Manufacturer Part Number: 4.210.050.800
Max. Output Power: 9995VA
Max. usable input current (MPPT 1 + MPPT 2): 41.5 A
Max. Output Current: 12.0A
Recommended OCPD/AC breaker size: 15A
Output Voltage: 480V
Max. input voltage: 1000V
Peak Efficiency: 98.1%
Protective Devices: DC insulation measurement, Operating point shift/power limitation, DC disconnect, and DC reverse polarity protection.
Compliance: UL 1741-2010, UL1998 (for functions: AFCI and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2008, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 (September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Shipping weight: 98 lb
Shipping dimensions: 28.5 x 20.1 x 8.9 in
Pallet Qty: 8
Manufacturer Part Number: 4.210.050.800
Max. Output Power: 9995VA
Max. usable input current (MPPT 1 + MPPT 2): 41.5 A
Max. Output Current: 12.0A
Recommended OCPD/AC breaker size: 15A
Output Voltage: 480V
Max. input voltage: 1000V
Peak Efficiency: 98.1%
Protective Devices: DC insulation measurement, Operating point shift/power limitation, DC disconnect, and DC reverse polarity protection.
Compliance: UL 1741-2010, UL1998 (for functions: AFCI and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2008, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 (September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Shipping weight: 98 lb
Shipping dimensions: 28.5 x 20.1 x 8.9 in
Pallet Qty: 8
