Product Details

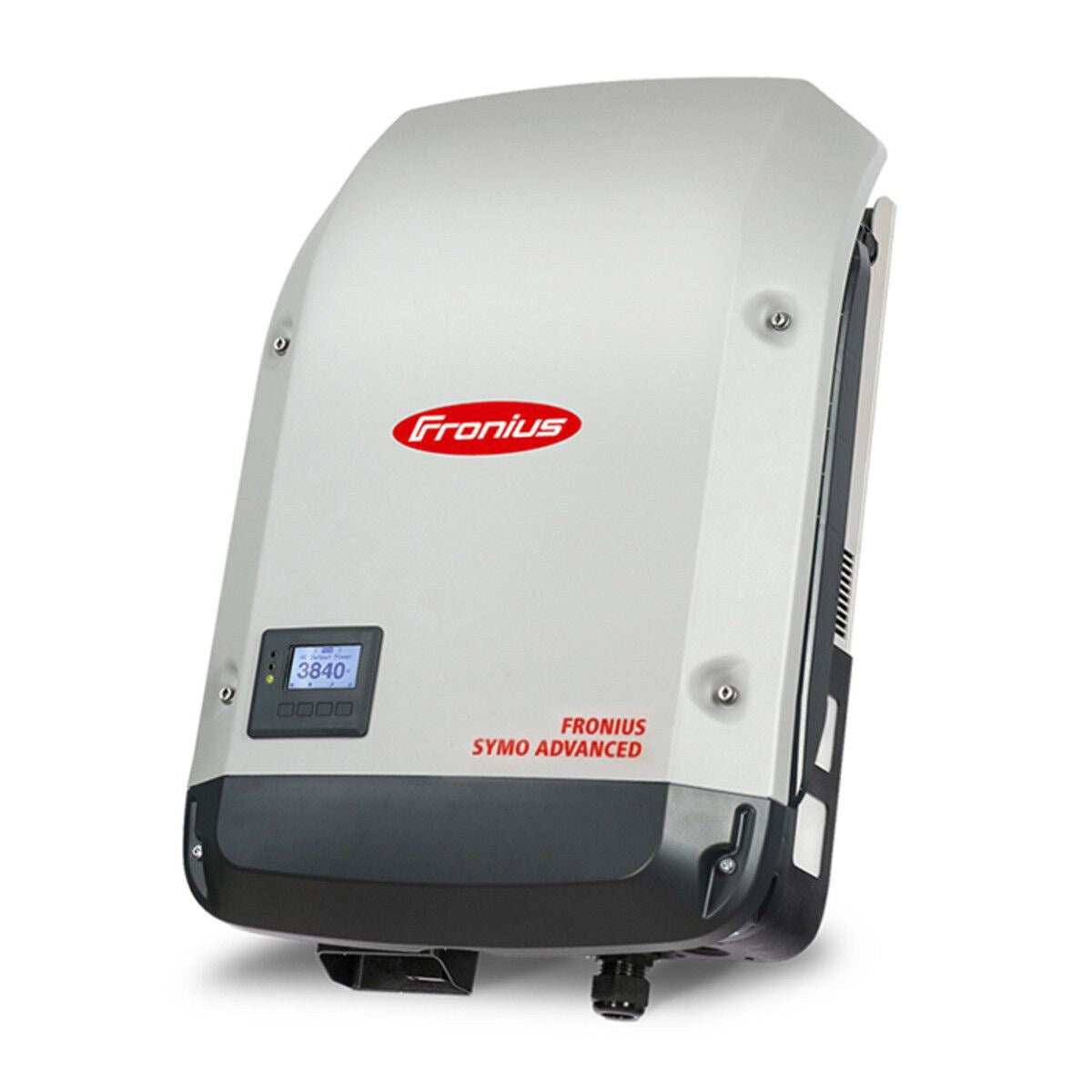

Fronius Symo Advanced Lite 24kW, 480V, 3-Phase
Fronius Symo Advanced Lite 24kW, 480V, 3-Phase
SKU: FRO-3119
Regular price
$3,829.50 CAD
Regular price
Sale price
$3,829.50 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
4,210,095,801
Input Voltage (Vdc):
1000 Volt
Output Voltage (Vac):
480 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.98
Fronius Symo Advanced Lite 24kW, 480V, 3-Phase include built-in SunSpec
The Fronius Symo Advanced inverter series has been specially developed for the demands of the North American market.
The Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional features zero tilt mounting, light weight and field serviceability.
Protective Devices
Anti islanding, Over temperature protection by output power derating/active cooling, AFCI, Rapid shutdown compliant, Ground Fault Protection with Isolation Monitor Interrupter, DC disconnect, and DC reverse polarity protection.
Compliance
UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
The Fronius Symo Advanced inverter series has been specially developed for the demands of the North American market.
The Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional features zero tilt mounting, light weight and field serviceability.
Protective Devices
Anti islanding, Over temperature protection by output power derating/active cooling, AFCI, Rapid shutdown compliant, Ground Fault Protection with Isolation Monitor Interrupter, DC disconnect, and DC reverse polarity protection.
Compliance
UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
