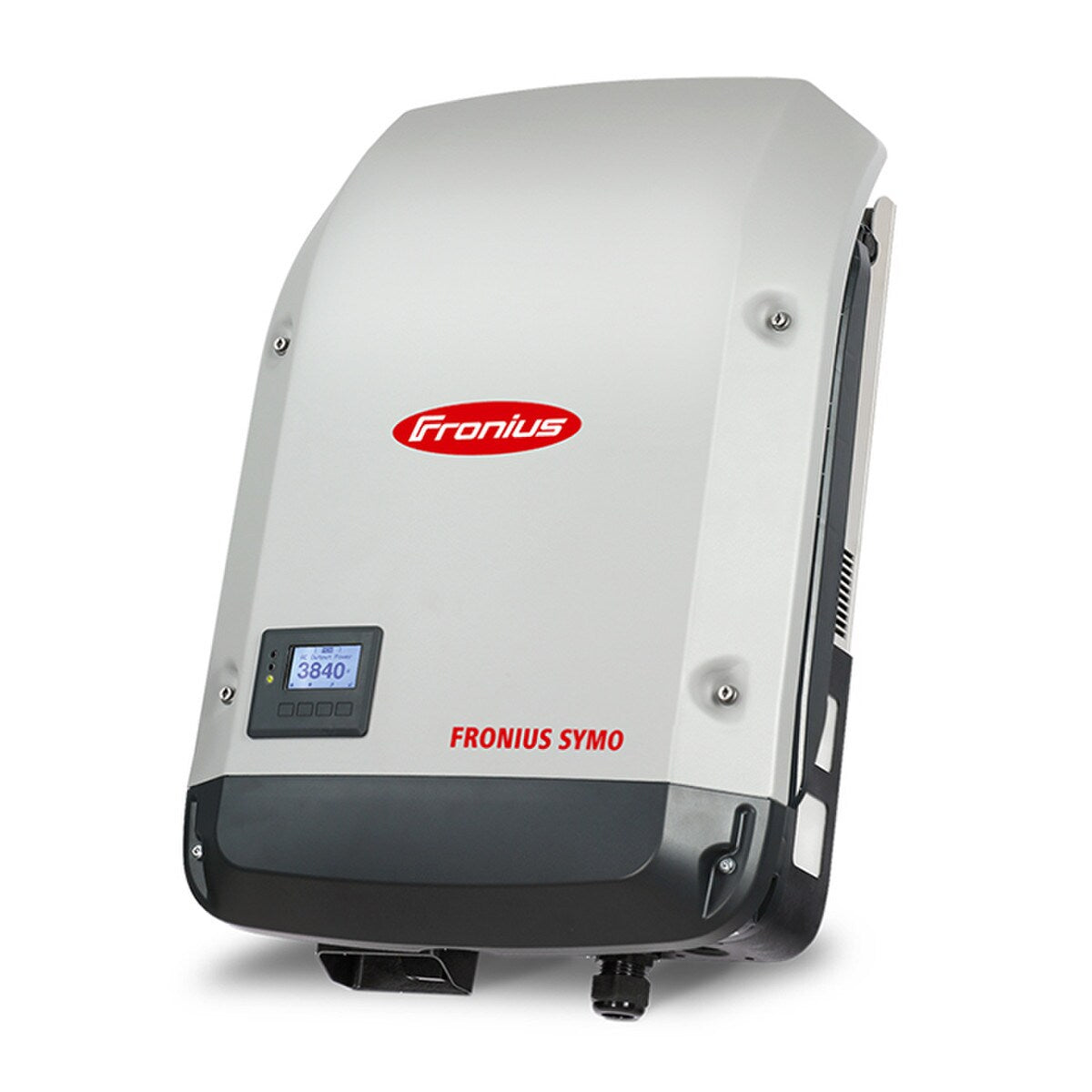

Fronius Symo FULL, 208V, 15.0kW, 3-Phase
Fronius Symo FULL, 208V, 15.0kW, 3-Phase
SKU: FRO-3003
Regular price
$3,760.50 CAD
Regular price
Sale price
$3,760.50 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
4210052840
Watt:
15000
Input Voltage (Vdc):
1000 Volt
Output Voltage (Vac):
240 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.981
The Fronius Symo inverter series has been specially developed for the demands of the North American market.
15.0 kW transformerless Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components. Furthermore, the meter interface permits dynamic feed-in management and a clear visualization of consumption.
Manufacturer Part Number: 4.210.052.840
Max. Output Power: 15000VA
Max. admissible input current (MPPT 1 + MPPT 2): 51 A
Max. Output Current: 21.7A
Recommended OCPD/AC breaker size: 35A
Output Voltage: 208/240V
Max. input voltage: 1000V
Peak Efficiency: 98.1%
Protective Devices: DC insulation measurement, Operating point shift/power limitation, DC disconnect, and DC reverse polarity protection.
Compliance: UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Shipping weight: 98 lb
Shipping dimensions: 28.5 x 20.1 x 8.9 in
Pallet Qty: 8
15.0 kW transformerless Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components. Furthermore, the meter interface permits dynamic feed-in management and a clear visualization of consumption.
Manufacturer Part Number: 4.210.052.840
Max. Output Power: 15000VA
Max. admissible input current (MPPT 1 + MPPT 2): 51 A
Max. Output Current: 21.7A
Recommended OCPD/AC breaker size: 35A
Output Voltage: 208/240V
Max. input voltage: 1000V
Peak Efficiency: 98.1%
Protective Devices: DC insulation measurement, Operating point shift/power limitation, DC disconnect, and DC reverse polarity protection.
Compliance: UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Shipping weight: 98 lb
Shipping dimensions: 28.5 x 20.1 x 8.9 in
Pallet Qty: 8
