Manufacturer Part Number:
4210052841
Watt:
15000
Input Voltage (Vdc):
1000 Volt
Output Voltage (Vac):
208 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.981

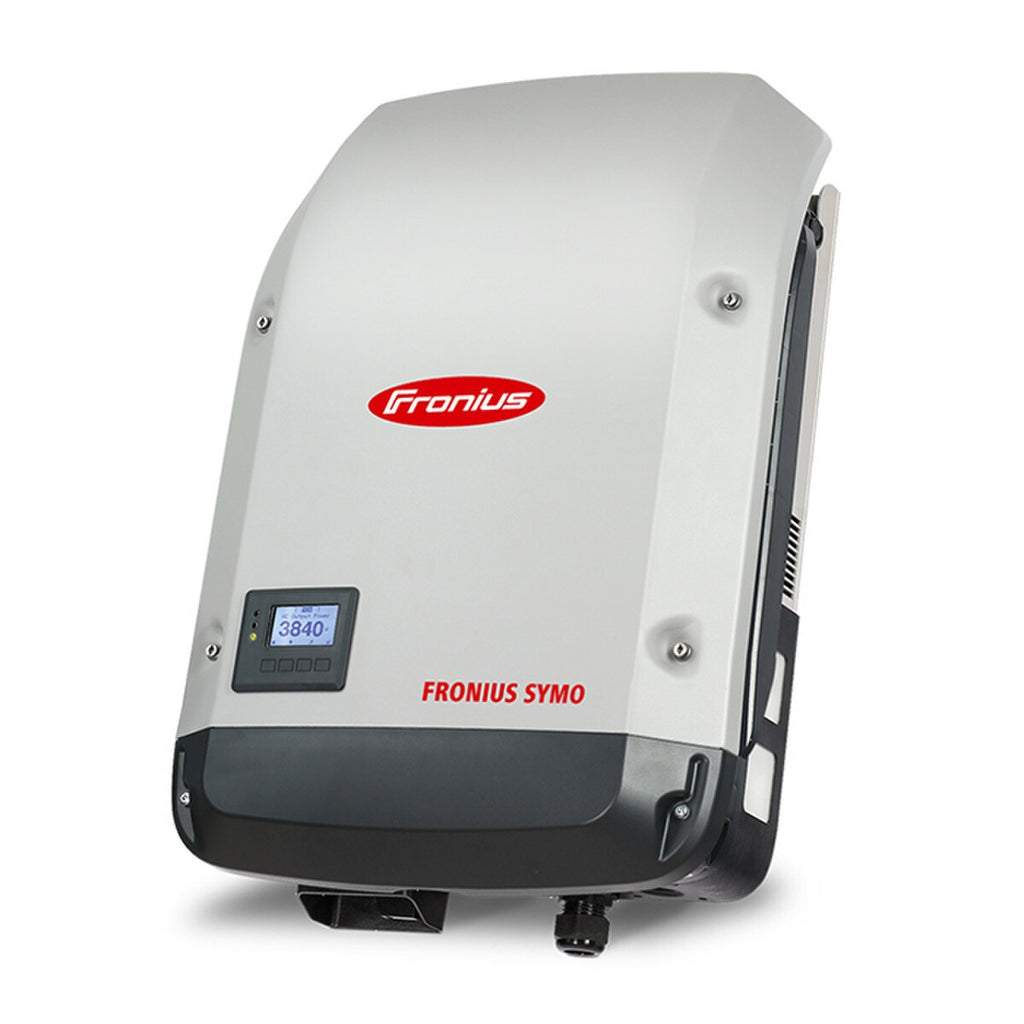

The Fronius Symo inverter series has been specially developed for the demands of the North American market.
Protective Devices
DC insulation measurement, Operating point shift/power limitation, DC disconnect, and DC reverse polarity protection.
Compliance
UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
