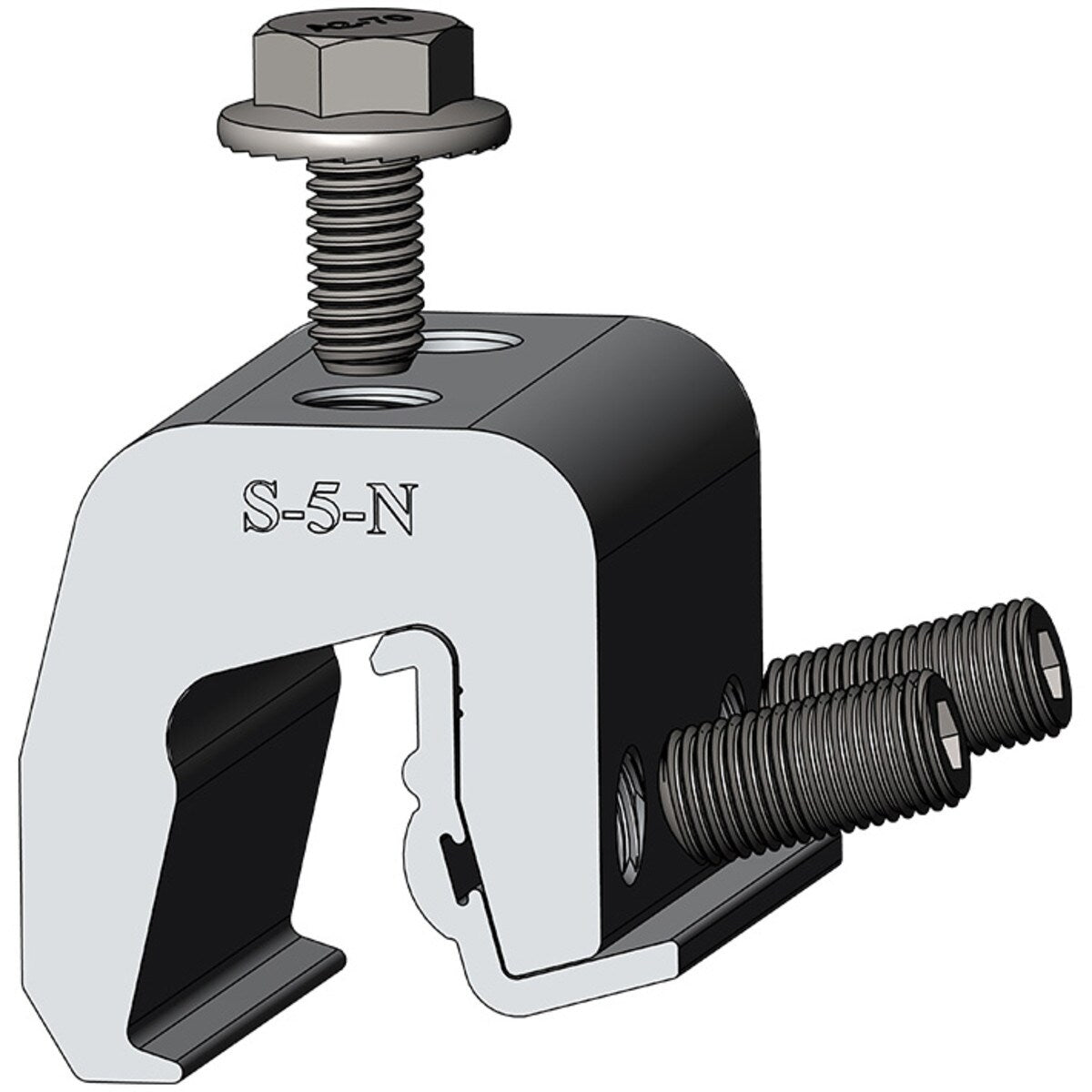

S-5! N w/Insert

The S-5-N is designed for heavy duty applications such as snow retention. The S-5-N can be used to mount S-5!’s ColorGard® to popular nail strip profiles, providing the strongest snow retention system on the market. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process, and the S-5! zero-penetration technology preserves the roof manufacturers’ warranties. With S-5-N clamps, mounting heavy duty applications to nail strip profiles just got a whole lot simpler!

Product Specifications:

Angled setscrews for easy installation; no special tools required
Special design for “nail-flange” SSR profiles ? 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm)
Clamp insert facilitates best-fit without damage to panel seam
Use for heavy-duty applications, such as snow retention
Two T-30 Torx round-point setscrews (Torx bit tip provided)
One M8 bolt included
