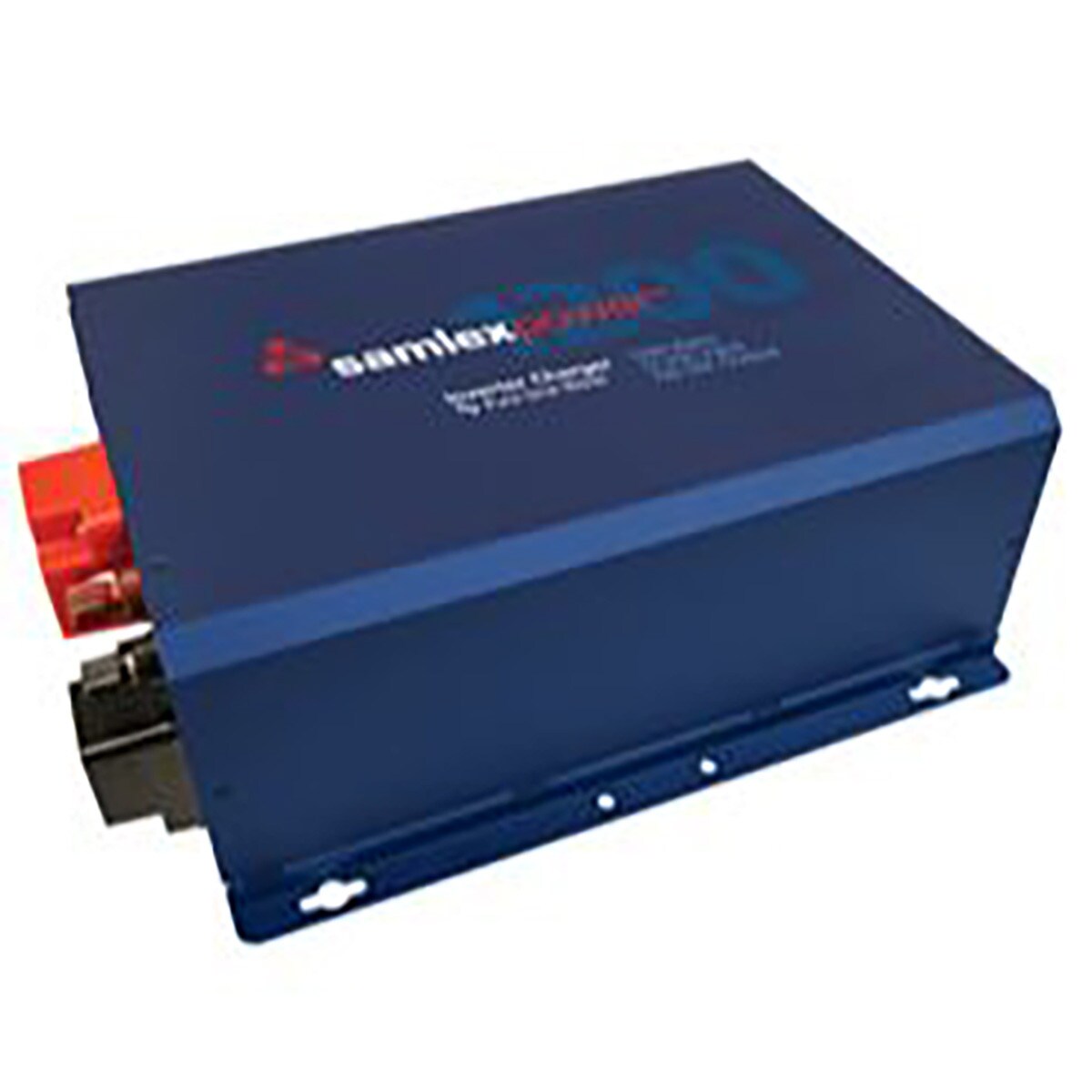

Samlex EVO-1224F Pure Sine, 1200W, 24VDC IN, 120VAC OUT

Samlex EVO-1224F Pure Sine 1200W 24VDC 120VAC Inverter/Charger

Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it’s needed and can be used with Lead Acid or Lithium Batteries. The EVO-1224-F is smaller and compact, with slightly less standard output power of 1200 Watts and a 40 Amp programmable charger, than our regular EVO™ Series. It comes with all the standard features of our regular series which makes it a good choice for handling short duration heavy surge loads at the reduced cost of a smaller inverter. It is good for use in boats, RVs, cabins, and specialty vehicles, as well as alternative energy, back-up and emergency power applications.

Also available in Hardwired option

EVO-RC-PLUS remote sold separately


Features
Adaptive Battery Charger Option for Lead Acid Batteries
6 programmable charging profiles – 2, 3 and 4 stages with Equalization
Algorithm monitoring in the Bulk Stage assesses the battery’s condition. The remaining charging stages are based on the battery’s condition rather than a pre-set charging time.
Reduces excess charging time and extends life of battery

Specifications
Input: 24 VDC
Output: 120 VAC
Watts: 1200 Watts
Surge: 3600 Watts
Outlets: GFCI
Fuse: External
Remote Control: EVO-RC-PLUS (Optional)
Weight: 38.8 lbs
Weight: 17.6 kg
Dimensions: 12.76 x 16.34 x 5.83 in
Dimensions: 324 x 415 x 148 mm
Safety: Intertek-ETL listed: Certified to CAN / CSA STD. C22.2 No. 107.1-01 ; Conforms to ANSI / UL STD. 458. Certified to FCC Part 15(B), Class A

Applications
Boats, RVs, trucks, specialty vehicles
Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
Back-up and emergency power applications
