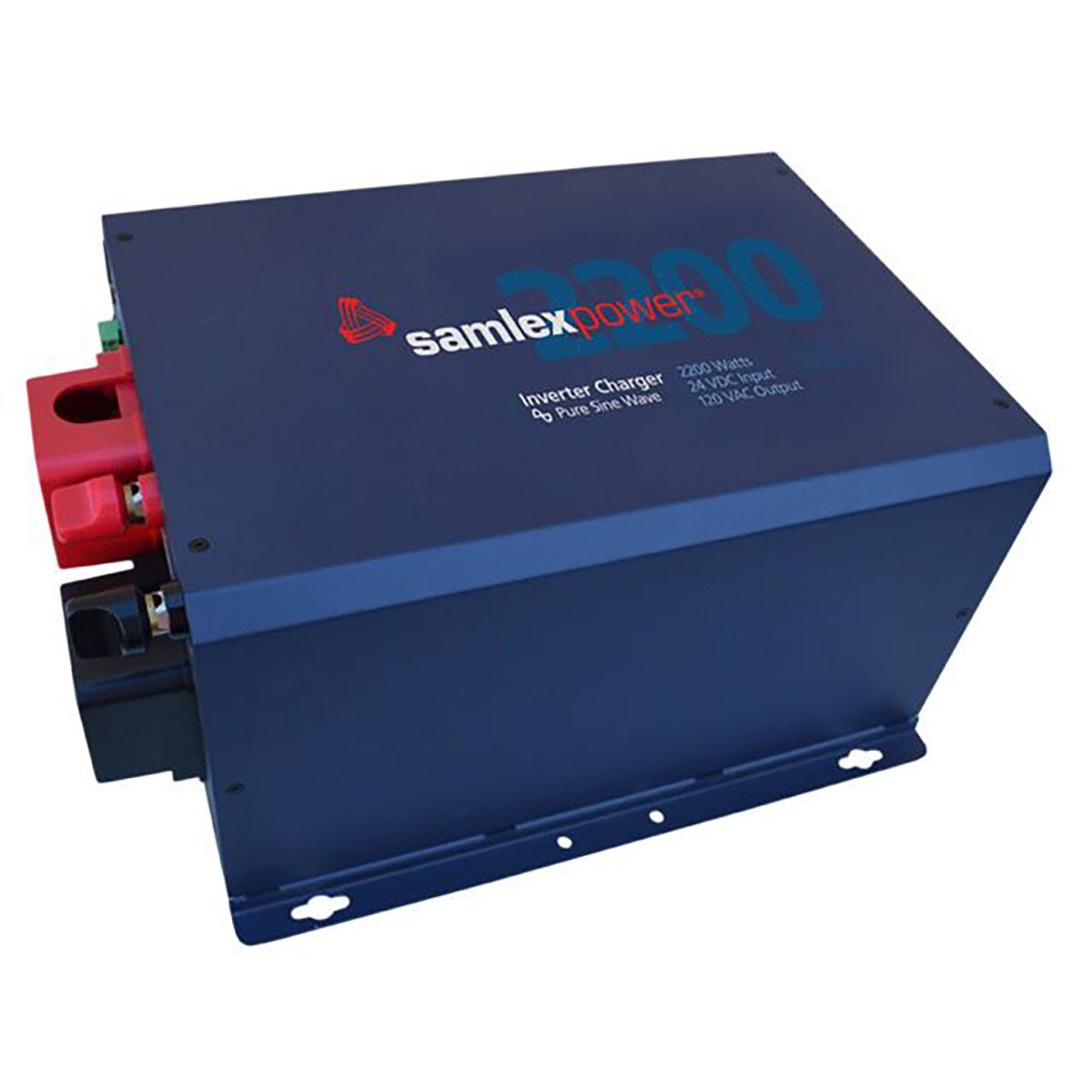

Samlex EVO-2224 Pure Sine, 2200W, 24VDC IN, 120VAC OUT
Samlex EVO-2224 Pure Sine, 2200W, 24VDC IN, 120VAC OUT
SKU: SMX-1003
Regular price
$2,206.85 CAD
Regular price
Sale price
$2,206.85 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
EVO-2224
Watt:
2200
Input Voltage (Vdc):
24 Volt
Output Voltage (Vac):
120 Volt
Phase:
1-phase
Inverter Type:
Off-grid
Technical Details
Efficiency(%):
93
Samlex EVO Series 2200W, 24VDC IN, 120VAC OUT, includes 70A Charger
Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.
Using state-of-the-art technology, the Samlex EVO™ inverter/charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.
The EVO-2224 is a 2200 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50/60 Hz. It intelligently integrates a 70 Amp 4 stage Battery Charger and a 40 Amp Transfer Relay into an advanced and affordable off-grid power solution.
EVO-RC remote control sold separately.
Specifications
Input: 24 VDC
Output: 120 VAC
Watts: 2200 Watts
Surge: 6600 Watts
Outlets: Hardwired
Fuse: External
Remote Control: EVO-RC (Optional Remote Control)
Weight: 57 lb
Dimensions: 12.79 x 16.77 x 8.15 in
Safety: ETL safety listed to stringent UL standards: 1741, 458, and to CSA C22.2 No. 107.1-01. EMI/EMC compliant with FCC Part 15(B), Class A and RoHS Compliant.
Applications
Boats, RVs, trucks, specialty vehicles
Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
Back-up and emergency power applications
