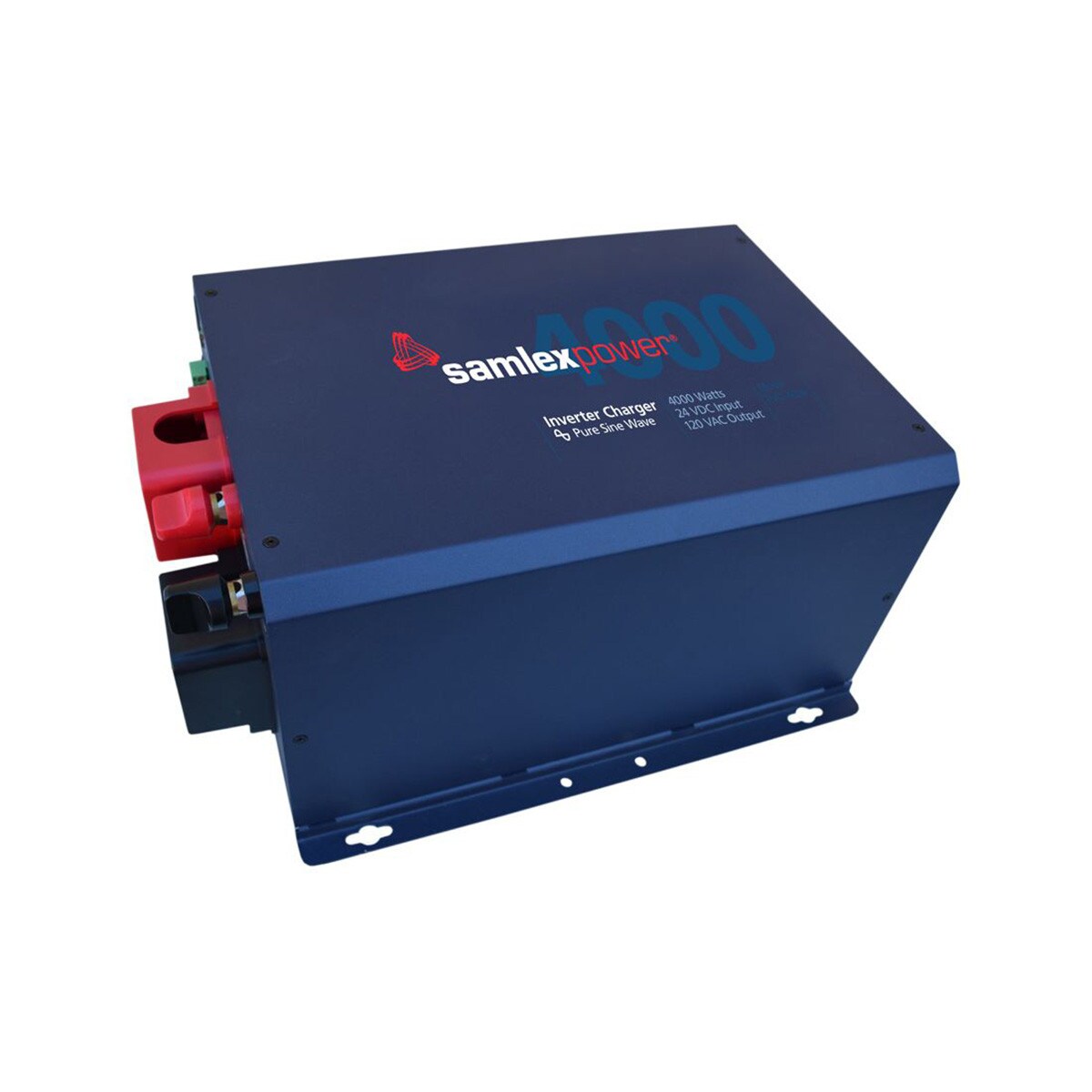

Samlex EVO-4024 Pure Sine, 4000W, 24VDC IN, 120VAC OUT, 110A Charger

Samlex EVO Series 4000W, 24VDC IN, 120VAC OUT, includes 110A Charger

Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.

Using state-of-the-art technology, the Samlex EVO™ inverter/charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.

The EVO-4024 is a 4000 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50/60 Hz. It intelligently integrates a 110 Amp 4 stage Battery Charger and a 70 Amp Transfer Relay into an advanced and affordable off-grid power solution.

Also available in 230 VAC output

EVO-RC remote control sold separately

Warranty
3 Year Limited Warranty

Specifications
Input: 24 VDC
Output: 120 VAC
Watts: 4000 Watts
Surge: 12000 Watts
Outlets: Hardwired
Fuse: External
Remote Control: EVO-RC (Optional)
Weight: 64 lbs
Weight: 29 kg
Dimensions: 12.79 x 16.77 x 8.15 in
Dimensions: 325 x 426 x 207 mm
Safety: ETL safety listed to stringent UL standards: 1741, 458, and to CSA C22.2 No. 107.1-01. EMI/EMC compliant with FCC Part 15(B), Class A and RoHS Compliant.

Features
AC Inputs
Two separate AC inputs – one for grid (priority #1), one for generator (priority #2), connect simultaneously, no need to reconfigure when different power sources are available.
Each AC input is programmable for voltage and frequency. User determines what the min and max thresholds are to switch from Grid or Generator to Inverter.
Generator start can be initiated by “Status Relay” contact, can be programmed to activate when grid is lost.

Solar Input
Connect a solar charge controller directly to the EVOTM through the Battery Charger external DC Input, seamlessly integrates solar charging into the EVO’s power system.
ONLINE Mode can be used to prioritize Batteries/Inverter over the grid, ideal for those wishing to operate primarily on solar power (when the grid is available, but might be costly).

Battery Charger
3 or 4 stage charging with Equalization (must be manually initiated).
Adaptive algorithm is used during Bulk to assess the condition of the battery. Subsequent stages are then based on the condition of the battery rather than pre-set time periods for Absorption and Float. Prevents unnecessary charging, extends the life of batteries.
Programmable – set battery voltage thresholds to initiate charging.

Transfer Switch
Zero transfer time when switching from Inverter to Grid. When grid comes on, the inverter synchronizes with the wave form and then transfers instantly at zero crossing.
<16ms transfer when going from Grid to Inverter. When grid is lost, the transfer relay switches to inverter at the correct place in the wave form, the transfer takes less than 16ms.

Surge Capacity (Power Boost)
The EVOTM has 3X surge power
Additionally, the EVOTM has large power overload allowances available for long periods of time. Increased inverter capacity means you can size your inverter smaller to handle heavy surge loads, reducing costs.

State-of-the-Art Technology
The EVOTM operates at 165 million instructions per second producing lightning fast load and response times
The EVOTM is practically indestructible. It has “Bullet-Proof Intelligence” in the form of 9 physical points of protection monitoring being scanned up to 10,000 times per second for adverse conditions. The EVOTM will detect fault conditions and initiate a healthy shutdown before any product damage can be done.
The EVO-RC remote control (sold separately) can be used to capture detailed EVOTM performance data. Records all detected faults and the conditions leading up to them. Data is stored on a removable 32GB SD Card (in the remote). Use data to analyze trends for more efficient use of system resources
The EVOTM uses five temperature sensors placed throughout the unit to determine operation of 2 speed controlled cooling fans. Reduces unnecessary fan noise and energy consumption by only running when and where the fans are needed.

Applications
Boats, RVs, trucks, specialty vehicles
Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
Back-up and emergency power applications
