Technical Details
Manufacturer Part Number:
EVO-RC-PLUS
The EVO-RC-PLUS is an intelligent remote control designed specifically for use with the following Samlex EvolutionTM Series of Inverter/Chargers:
F Series: EVO-1212F, EVO-1212F-HW, EVO-1224F, EVO-1224F-HW
120V Models: EVO-2212, EVO-3012, EVO-2224, EVO-4024
230V Models: EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E
120/240V Split Phase Model: EVO-4248SP

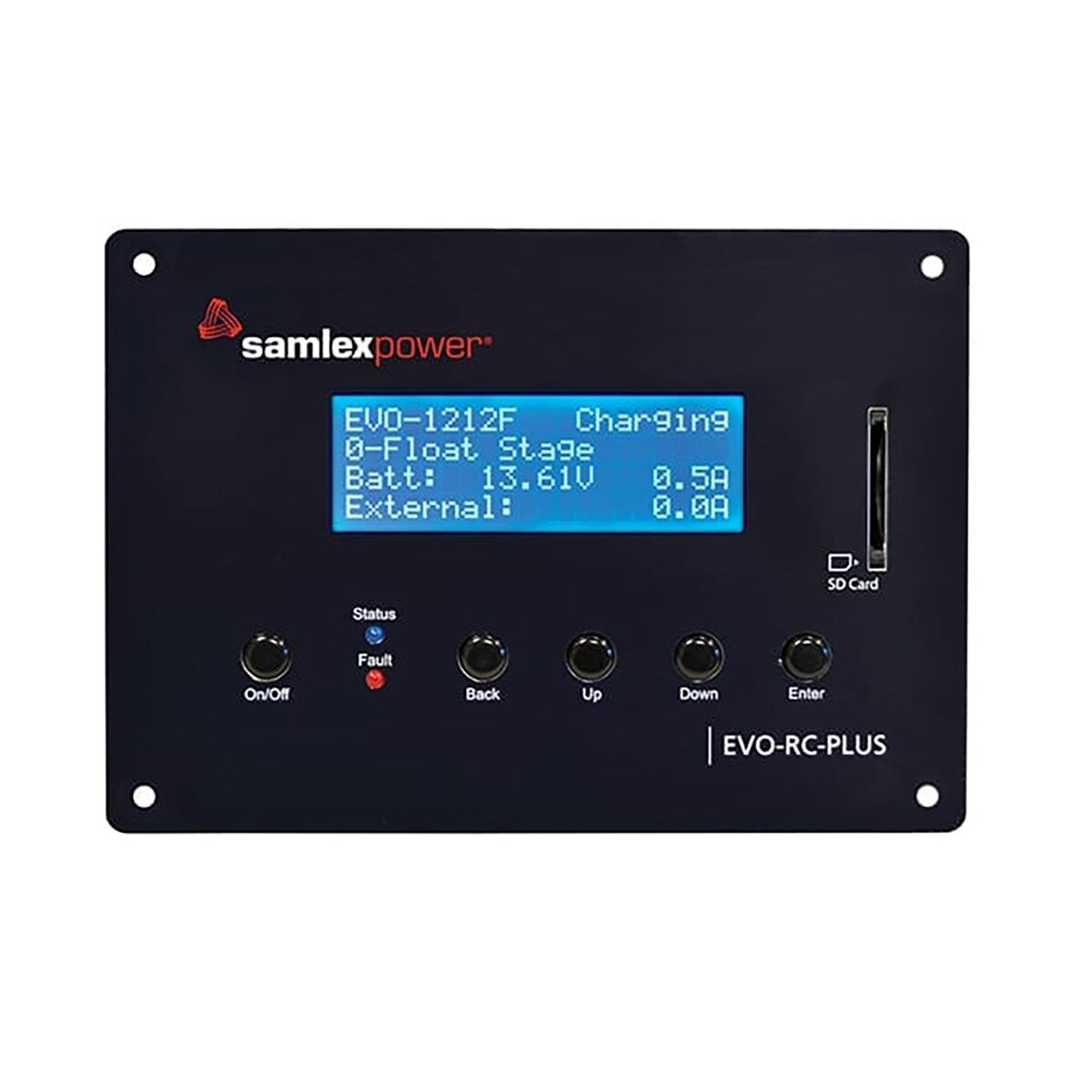

View real-time activity on the alpha numeric LCD display with 4 rows of 20 character while the unit is operating: Output voltage, Frequency, Amps, Watts, Volt Amps, Power Factor, Battery Voltage, Battery Current, Solar Input Current and more.
Use the remote to program inverter and battery charging parameters. Save a parameter set on a removable 32GB SD Card (the SD card slot located on the remote face of the EVO-RC-PLUS). Then transfer the saved parameters to other EVO™ inverter/chargers.
Data log historic power consumption, inverter functionality, battery charging activity, faults and all of the conditions leading up to them. Analyze trends for more efficient use of off-grid resources.
Warranty
3 Year Limited Warranty
Features
Advanced features for programming various parameters and modes of operation
4 rows of 20 characters alpha numeric LCD display for messaging
Robust metal enclosure
SD card slot can manage a removable SD Card up to 32GB (SD Card not included)
Includes 10M/33ft data cable
Applications
Boats, RVs, trucks, specialty vehicles
Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
Back-up and emergency power applications
