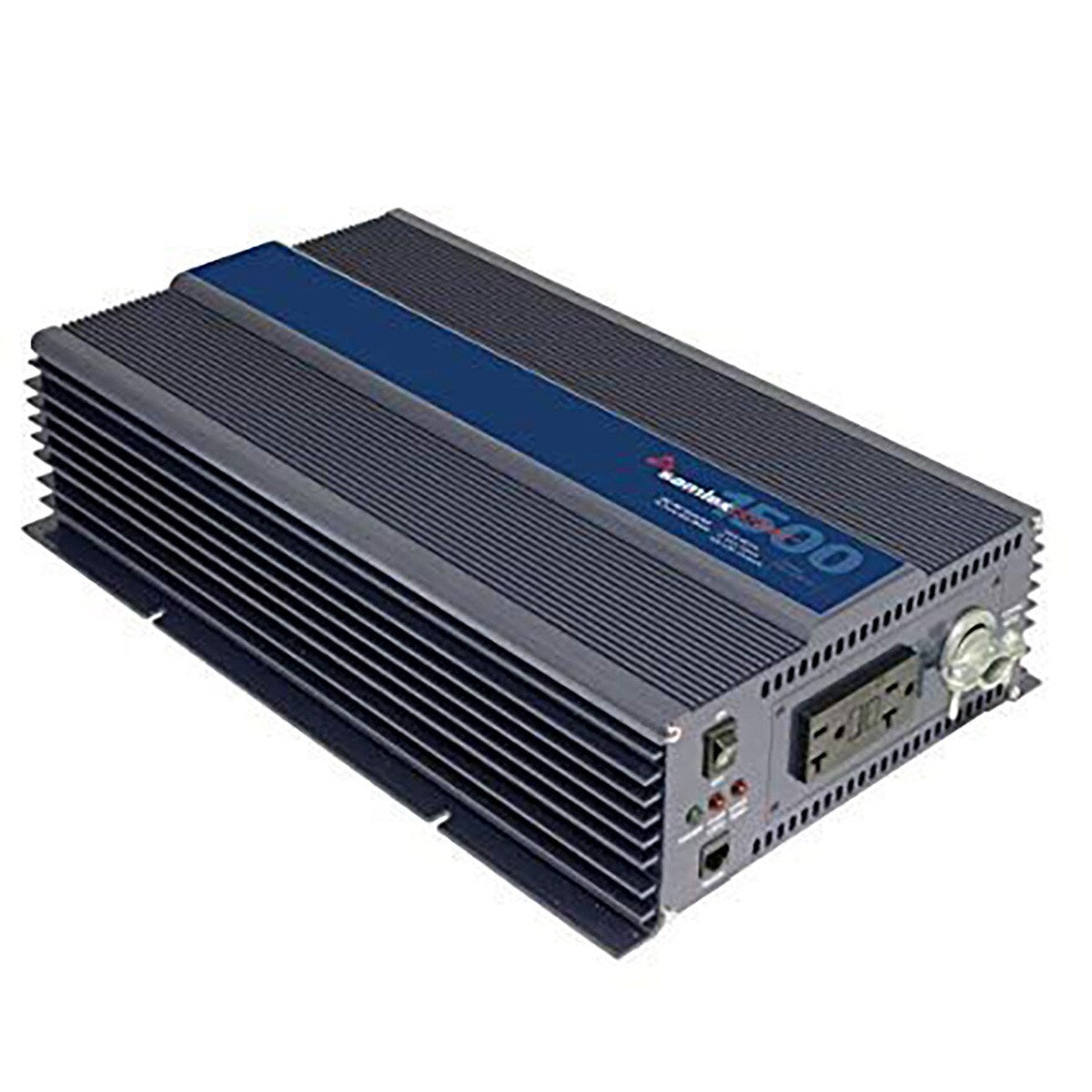

Samlex PST-1500-12 Pure Sine, 1500W, 12VDC IN, 120VAC OUT
Samlex PST-1500-12 Pure Sine, 1500W, 12VDC IN, 120VAC OUT
SKU: SMX-1106
Regular price
$784.30 CAD
Regular price
Sale price
$784.30 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
PST-1500-12
Watt:
1500
Input Voltage (Vdc):
12 Volt
Output Voltage (Vac):
120 Volt
Phase:
1-phase
Inverter Type:
Off-grid
Technical Details
Efficiency(%):
85
Samlex PST Series 1500W, 12VDC IN, 120VAC OUT Hardwire Capable
This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.
Optional remote control (sold separately): Model RC-300
Also available in 24V and 48V models
Warranty
3 Year Limited Warranty
Features
High efficiency
Can be hard wired
Temperature controlled cooling fan – reduces energy consumption
Low interference
Wide operating DC input range: 10.7 – 16.5 VDC
Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
Low idle power draw
Dual GFCI protected AC outlets
Optional remote control (sold separately): Model RC-300
Safety certified to UL standards, FCC compliant
Remote Input – Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
Specifications
Input: 12 VDC
Output: 120 VAC
Watts: 1500
Surge: 3000 Watts
Remote Control: RC-300 sold seperately
Weight: 15.6 (lbs)
Weight: 7.1 (kg)
Dimensions: 10.35 x 18.43 x 4.16 (in)
Dimensions: 263 x 468.2 x 105.6 (mm)
Safety: ETL to UL Standard
Applications
Service vehicles
Mobile Offices
Boats
Recreation Vehicles, Camping
Telecommunication
Field work / Construction sites
Solar power systems
Emergency backup power
Home electronics: TV, VCR, video games
Computers, printers
