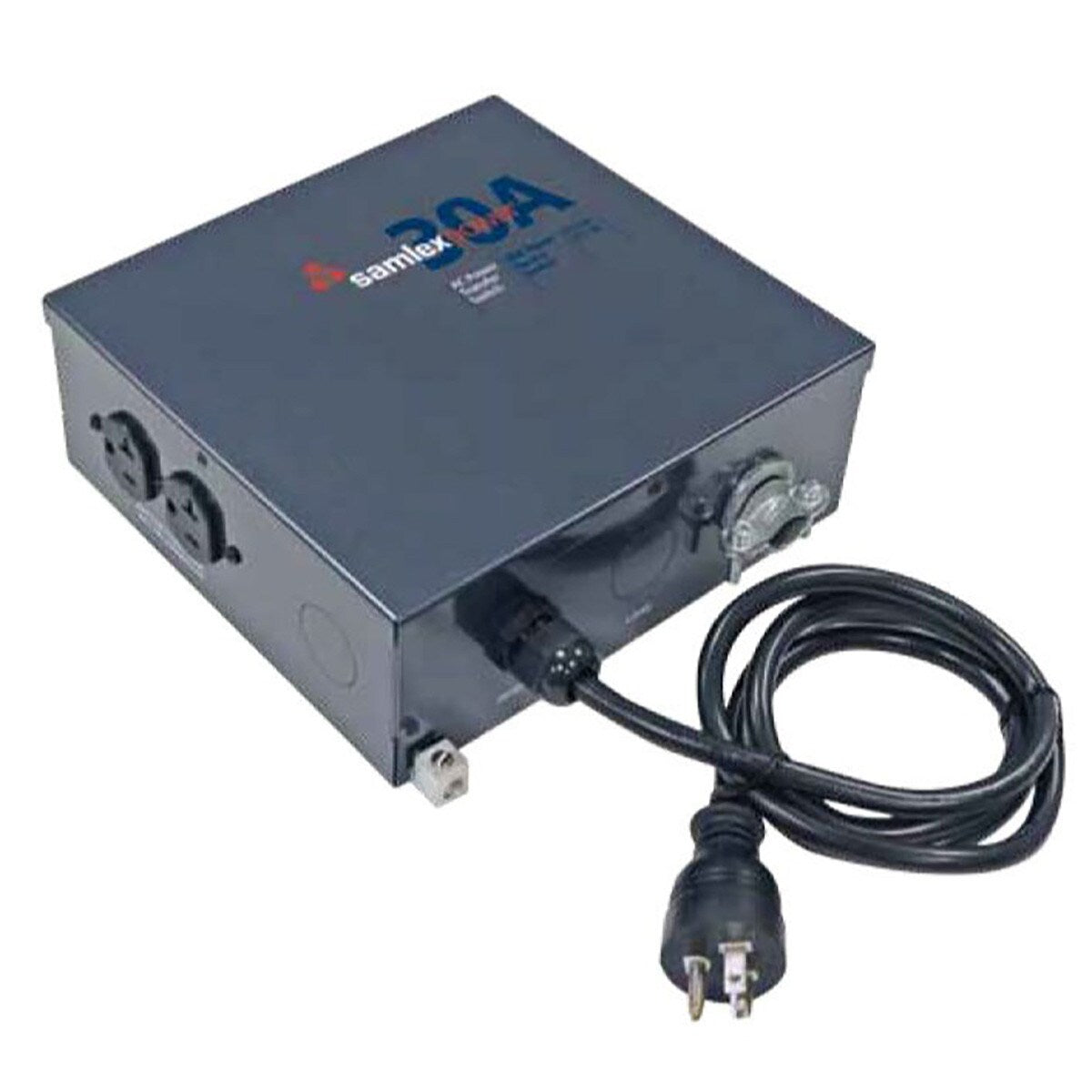

Samlex STS-30 Transfer Switch, 30A, 120V

Design Features
Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
NEMA5-20R Duplex Receptacle for convenient connection of battery charger

Specifications
Output: 120 VAC
Amps: 30 Amps
Weight: 4.4 (lbs)
Weight: 1.99 (kg)
Dimensions: 9 x 8.25 x 3.25 (in)
Dimensions: 22.9 x 21 x 8.3 (cm)

Applications
Solar power systems
Emergency backup power
Mobile offices
Boats
Lighting systems
Recreational vehicles, camping
Automotive
Telecommunications
Field work/construction sites

Warranty
2 Year Limited Warranty
