Manufacturer Part Number:
SGW-1002
Watt:
125000
Input Voltage (Vdc):
1500 Volt
Output Voltage (Vac):
1500 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.989

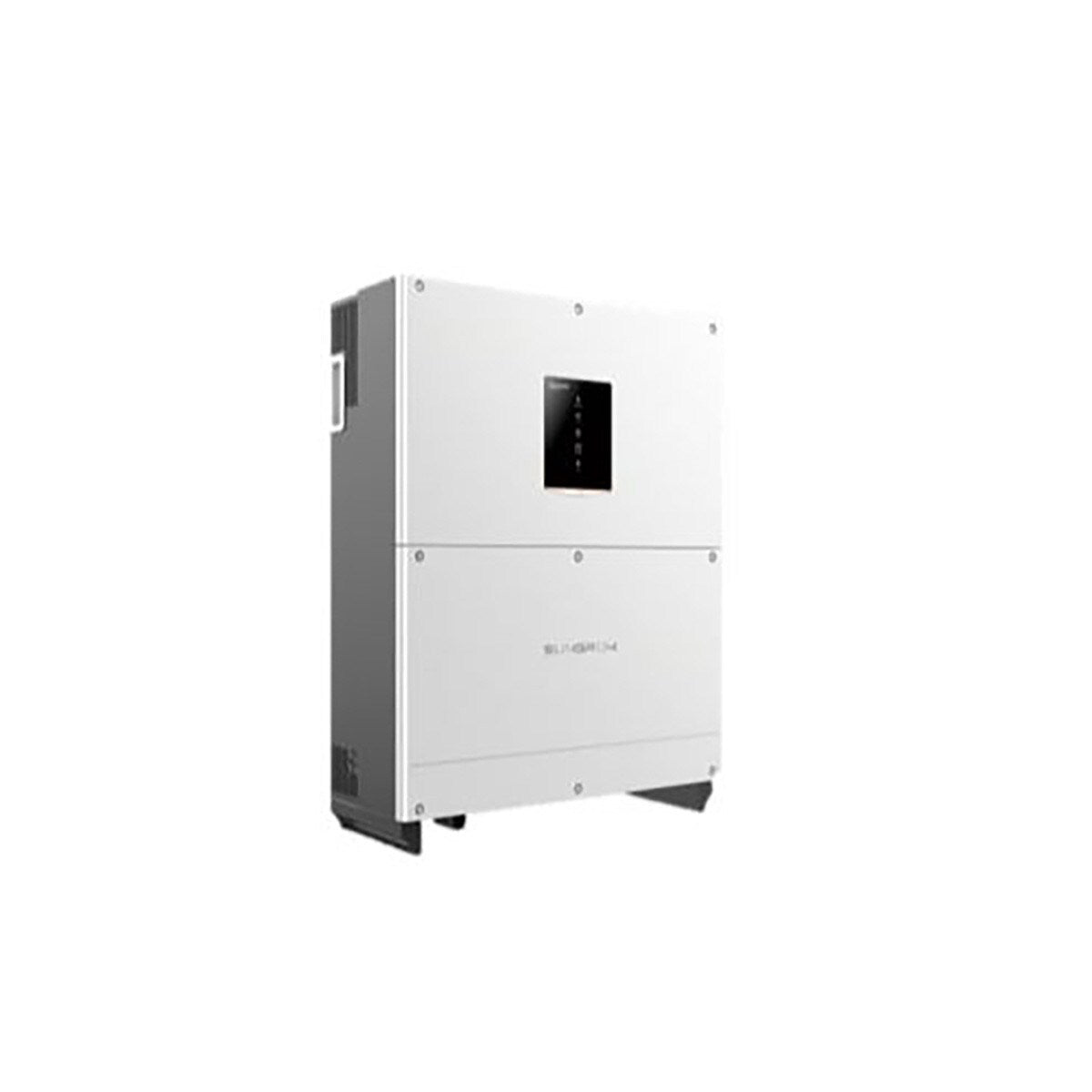

Manufacturer Part Number: SG125HV
Max. Output Power: 125000W
Output Voltage Range: 860-1450VAC
Max. Input Voltage: 1500VDC
Max. PV input current: 148A
Max. Output Current: 120.0A
MPPT Channels: 1
Peak Efficiency: 98.9%
Protective Devices: DC reverse connection protection, AC short-circuit protection, Leakage current protection, Grid monitoring, DC switch / AC switch, and Overvoltage protection (DC Type II / AC Type II).
Compliance: UL1741, UL1741SA, IEEE1547, IEEE1547.1, CSA C22.2 107.1-01-2001, FCC Part15 Sub-part B Class A Limits, California Rule 21, IEC 62109-1/-2, IEC 61000-6-2/-4, IEC 61727, IEC62116, BDEW, EN50549, VDE-AR-N 4110:2018, VDE-AR-N 4120:2018, UNE 206007-1:2013, P.O.12.3, UTE C15-712-1:2013, CEI 0-16:2017, IEC 61683, PEA, NTCO
Shipping weight: 167.5 lb
Shipping dimensions: 26.4 x 35.5 x 11.7 in
Pallet Qty: 1
