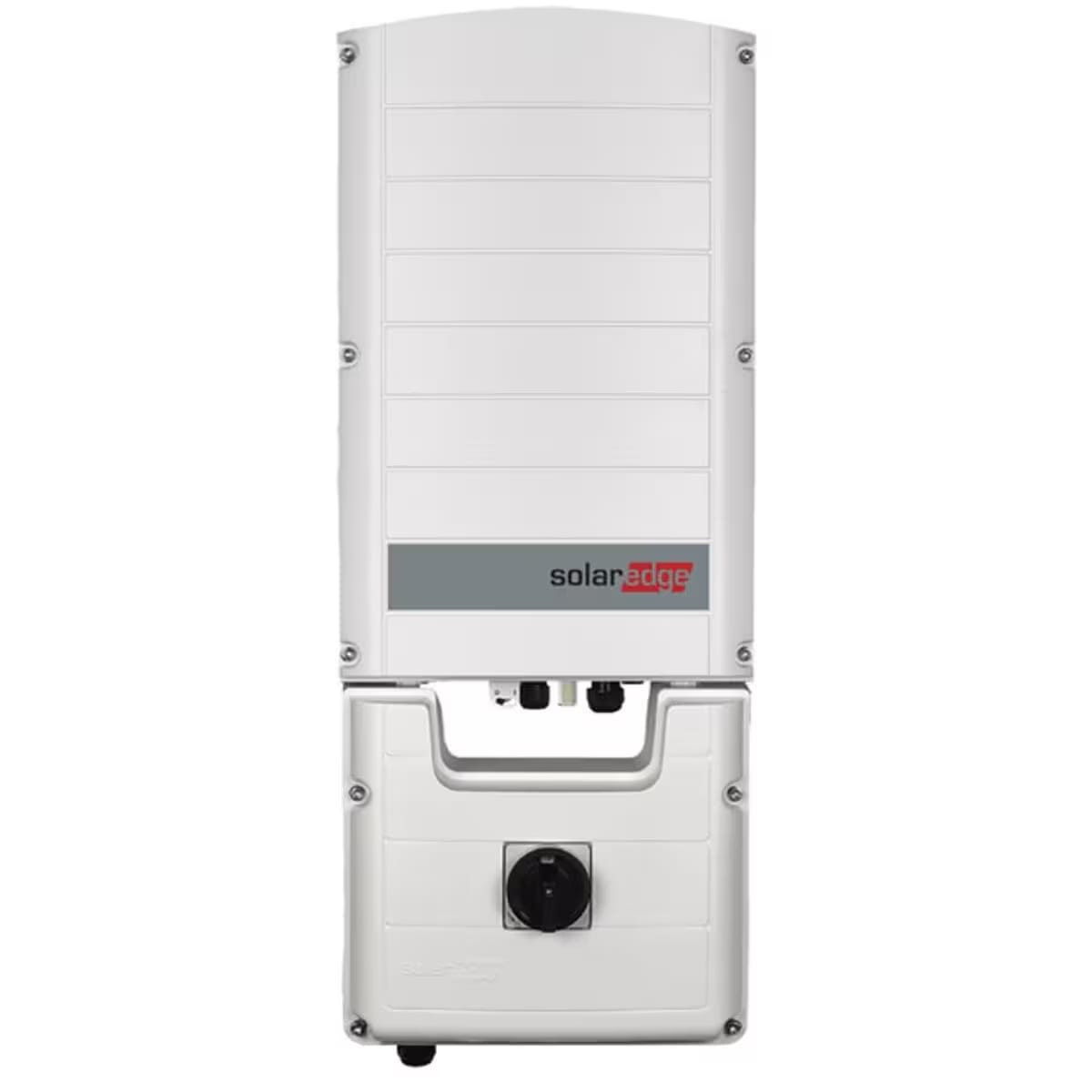

Manufacturer Part Number:
SE17.3K-USR2IBNZ4
Watt:
17300
Input Voltage (Vdc):
600 Volt
Output Voltage (Vac):
208 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.975
The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage over a wider range of string lengths and regardless of environmental conditions.
Manufacturer Part Number: SE17.3K-USR2IBNZ4
Max. Output Power: 17300W
Output Voltage: 120/208V
Max. Input Voltage: 600VDC
Cont. Output Current (per phase): 48.25A
Max. Input Current: 48.25A
Peak Efficiency: 97.5%
Compliance: UL1741, UL1741SA, CSA 22.2, UL1699B, IEEE1547, Rule 21, Rule 14 (HI), FCC Part 15 Class A
Shipping weight: 78.2 lb
Shipping dimensions: 31.8 x 12.5 x 11.8 in
Pallet Qty: 6
