Manufacturer Part Number:
SE5000H-US000BEU4
Watt:
5000
Input Voltage (Vdc):
480 Volt
Output Voltage (Vac):
240 Volt
Phase:
1-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency:
0.992

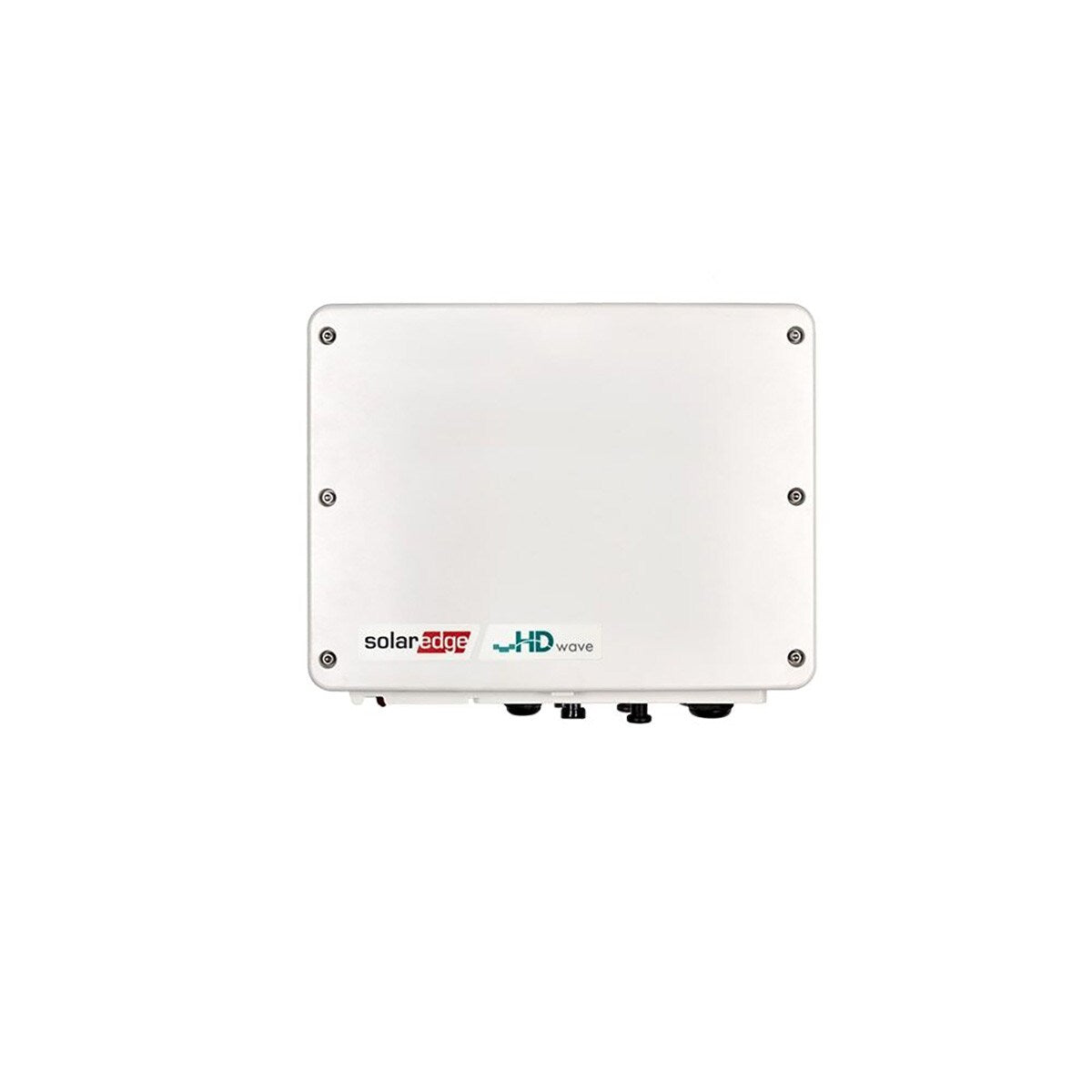

The SolarEdge single phase inverter with Home-Wave technology breaks the mold of traditional solar inverters. Winner of the prestigious 2016 Intersolar Award and the renowned 2018 Edison Award, the single phase Inverter is specifically designed to work with SolarEdge power optimizers and features a standard 12-year warranty extendable to 20 or 25 years.
Protective Devices
Rapid shutdown (NEC 2014 & 2017 690.12)
DC Input AWG Range (# of strings): 14-6AWG (1-2)
AFCI
Compliance
Safety (UL1741, UL1741SA, CSA C22.2, Canadian AFCI according to T.I.L M-07); Grid connection standards (IEEE1547, Rule 21, Rule 14 (HI)); Emissions (FCC Part 15 Class B).
