Manufacturer Part Number:
Solis-1P3.6K-4G-US-APST
Watt:
3800
Input Voltage (Vdc):
600 Volt
Output Voltage (Vac):
240 Volt
Phase:
1-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency (%):
97.3

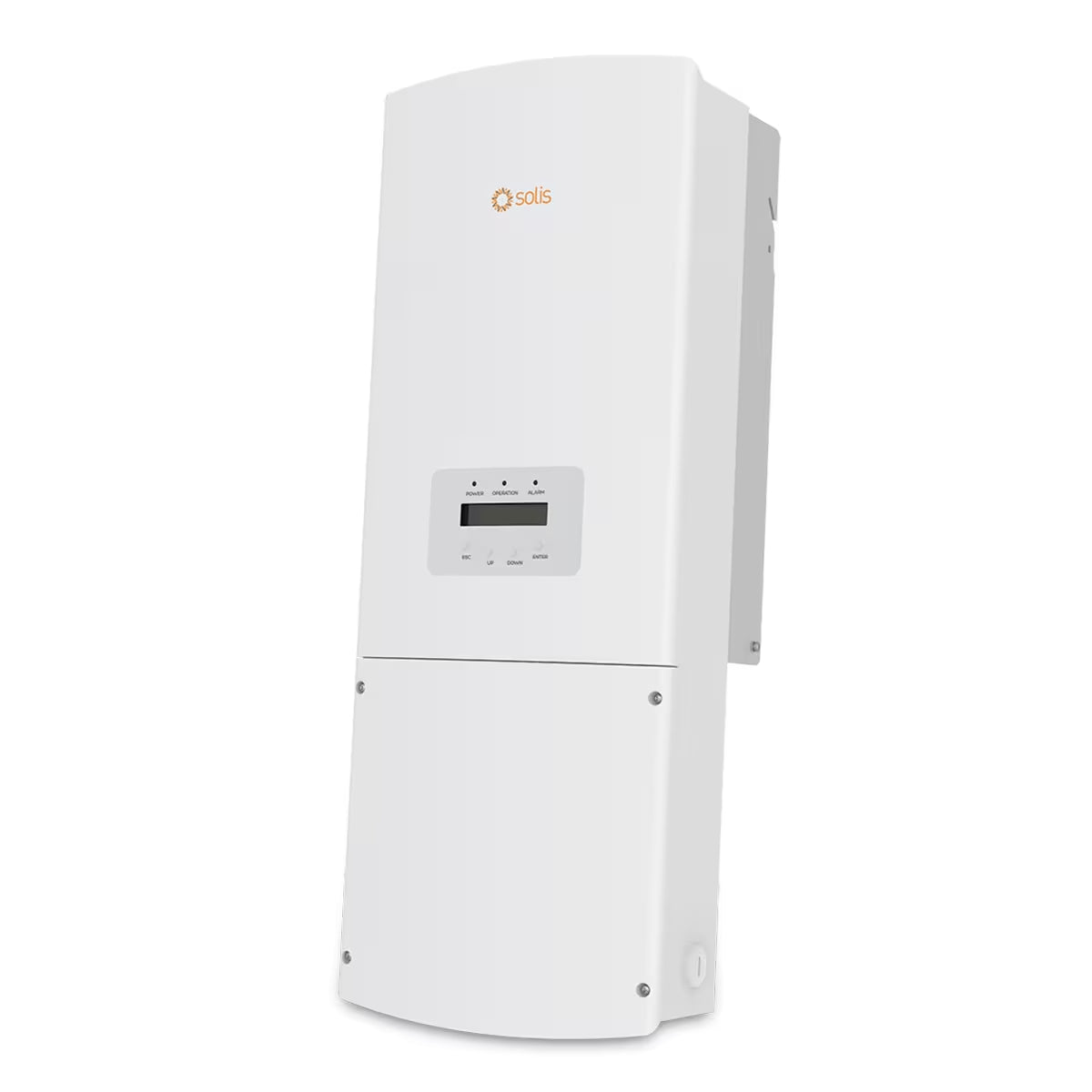

Solis Solar Inverter 3.6kw 1ph 600Vdc; 120/240Vac 2 MPPT, w/ APS TX
Solis 3.6-5KW US plus version single phase string inverters have dual MPPTs which can be utilized in complex design environments. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
Warranty
Standard 10 yr warranty (UL1741SB)
Product Features
String current up to 14A
Support module level monitoring
Max. efficiency 97.7% (CEC efficiency 97.1%)
CA Rule 21 compliant and UL 1741 SB Certified
Sunspec protocol with option cellular and WiFi
AFCI protection, proactively reduces fire risk
Integrated module level rapid shutdown transmitter
10 years standard warranty with extension options
Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance Fast and dynamic MPPTs and industry-leading DC voltage range
