Manufacturer Part Number:
Solis-1P7K-4G-US-APST
Watt:
7000
Input Voltage (Vdc):
600 Volt
Output Voltage (Vac):
240 Volt
Phase:
1-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency (%):
97.5

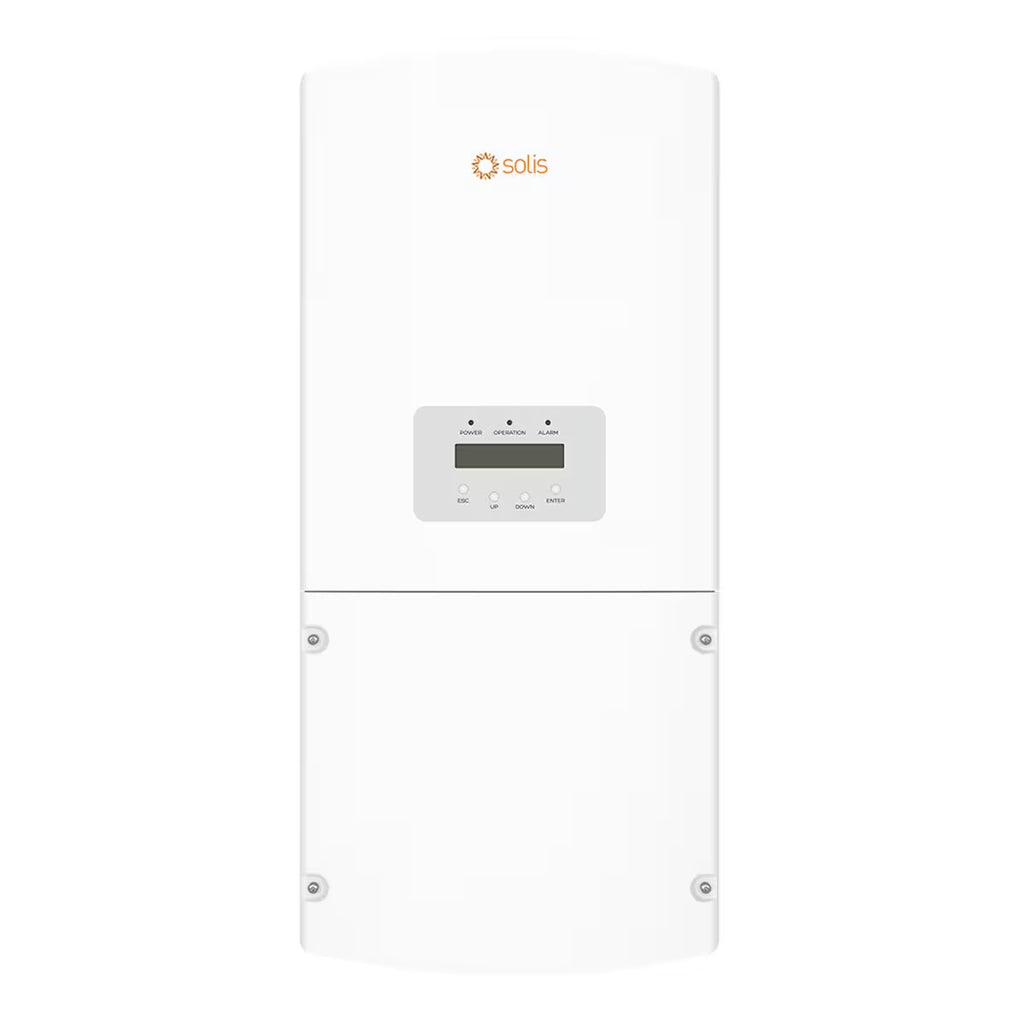

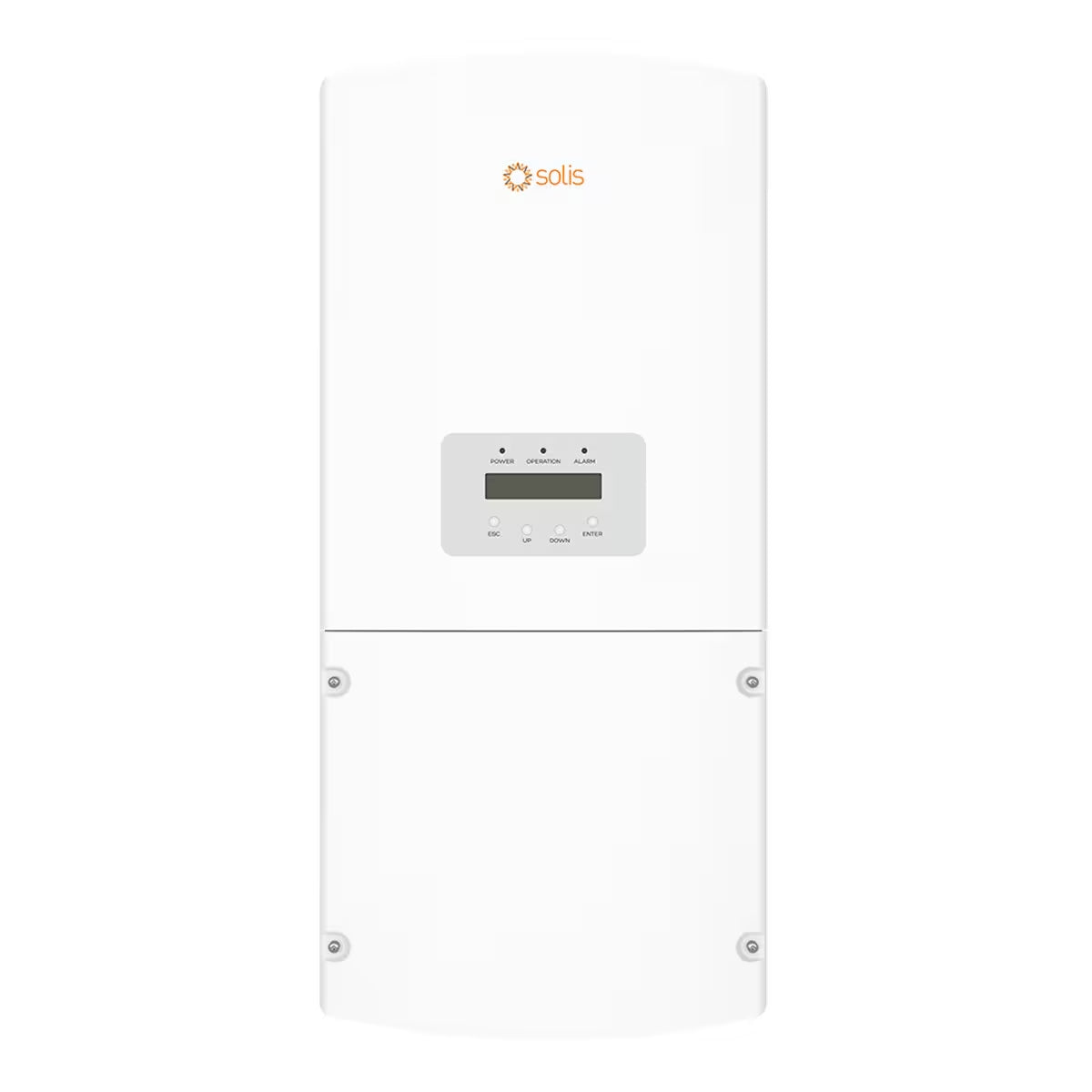

Solis Solar Inverter 7kw 1ph 600Vdc; 120/240Vac 3 MPPT, w/ APS TX
Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
Product Features
String current up to 14A
Support module level monitoring
Industry-leading 3 and 4 MPPT designs
Max. efficiency 97.8% (CEC efficiency 97.5%)
CA Rule 21 compliant and UL 1741 SB Certified
Sunspec protocol with option cellular and WiFi
Integrated module level rapid shutdown transmitter
AFCI protection, proactively reduces fire risk
10 years standard warranty with extension options
Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
