Technical Details
Manufacturer Part Number:
Solis-255K EHV-5G-US-PLUS
Input Voltage (Vdc):
1500 Volt
Output Voltage (Vac):
800 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency (%):
99

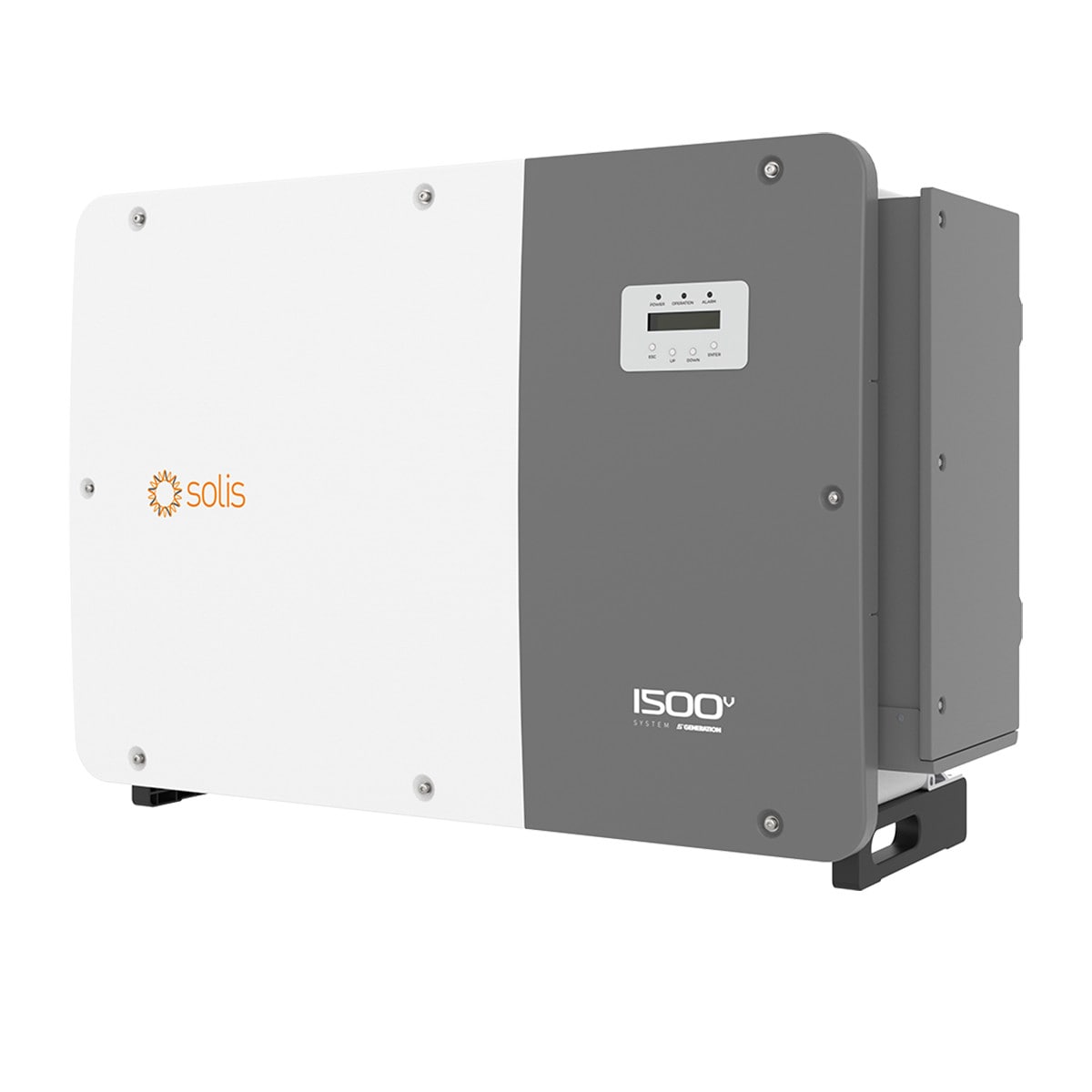

Solis-255K EHV-5G-US-PLUS 255kW-PLUS 3ph 1500Vdc; 800Vac; 12 MPPT Yconn w/AFCI MC4 LCD
125-255kW three-phase utility-scale 1500 Vdc PV string inverters have 9 MPPT (125K) or 12 independent MPPTs (185 & 255K) with high-rated dc inputs that support "Y" type connection in DC side, up to 30A per DC input . Maximum string input current 15A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent PV string monitoring reduces fault location time.
Product Features
> 1.5 DC/AC ratio
UL 1741 SA and SB
Type 4X, C5 Anti-Corrosion Level
DC side supports "Y" connector
Reserve DC energy storage access
High power tracking density 75MPPT/MW
Compatible with 500W+ bifacial modules
Support aluminium wire to reduce cost
Fuse free design, safe and maintenance free
PLC (optional)
AFCI protection, proactively reduces fire risk
Intelligent string monitoring, smart I-V curve scan
9/12/14 MPPTs, max. efficiency 99.0% (CEC efficiency 98.3%)
High quality components from globally recognized suppliers
Integrated nighttime PID recovery for optimal module performance
Remote firmware upgrade with simple operation (Requires the user to use Solis monitoring)
