Product Details

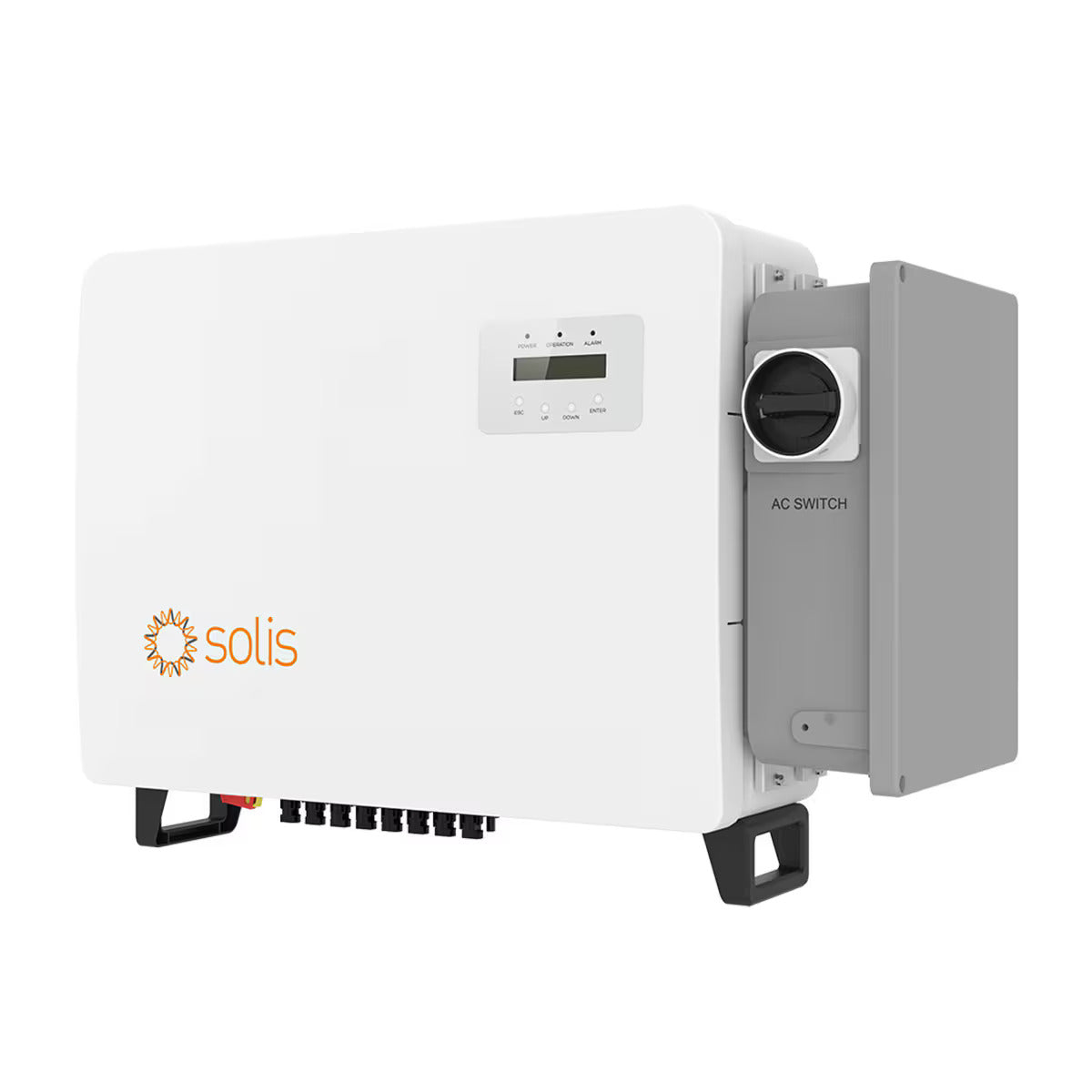

Solis-60K-US-F-LSW, 60kW, 1000Vdc, Three Phase
Solis-60K-US-F-LSW, 60kW, 1000Vdc, Three Phase
SKU: SLS-2006
Regular price
$6,609.05 CAD
Regular price
Sale price
$6,609.05 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
S6-GC60K-US-APS
Watt:
60000
Input Voltage (Vdc):
1000 Volt
Output Voltage (Vac):
480 Volt
Phase:
3-phase
Inverter Type:
Grid-tied
Technical Details
Efficiency (%):
98.8
Solis-60K-US-F-LSW & Solis-(50-66)K-LWB-SPRT 60kW 3ph 1000Vdc; 480Vac 4 MPPT w/AFCI & SunSpec TX
The Solis-(50-66)K three phase series string inverters are suitable for commercial and light industrial PV plants. These units have a compact and lightweight design making them an easy two-person installation. The ultra-low THDi of ?2% and filter features add multiple layers of protection for the grid. Solis 50-66K inverters can be parallel-connected up to 6 MW. For easy installation and O&M, these units have a separable wiring box allowing the EPC to install the wiring box ahead of time and add the inverter at a later time. To finish it off these units have multiple options of communications with free Solis APPs and PC monitoring on SolisCloud.
Product Features
Wide voltage range and low startup voltage
10 years standard warranty with extension options
Transformer-less three phase design with 480Vac output
Web-based data monitoring with downloadable Solis Mobile App
Max. efficiency 98.8% (CEC efficiency 98.4%) with ultra-low start up voltage
Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
Designed for all commercial, industrial, and utility-scale applications Industry-leading 4 MPPT designs with fast (<5 sec.) MPPT response times
RS-485 Modbus communication protocol with Wi-Fi interface
The Solis-(50-66)K three phase series string inverters are suitable for commercial and light industrial PV plants. These units have a compact and lightweight design making them an easy two-person installation. The ultra-low THDi of ?2% and filter features add multiple layers of protection for the grid. Solis 50-66K inverters can be parallel-connected up to 6 MW. For easy installation and O&M, these units have a separable wiring box allowing the EPC to install the wiring box ahead of time and add the inverter at a later time. To finish it off these units have multiple options of communications with free Solis APPs and PC monitoring on SolisCloud.
Product Features
Wide voltage range and low startup voltage
10 years standard warranty with extension options
Transformer-less three phase design with 480Vac output
Web-based data monitoring with downloadable Solis Mobile App
Max. efficiency 98.8% (CEC efficiency 98.4%) with ultra-low start up voltage
Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
Designed for all commercial, industrial, and utility-scale applications Industry-leading 4 MPPT designs with fast (<5 sec.) MPPT response times
RS-485 Modbus communication protocol with Wi-Fi interface
