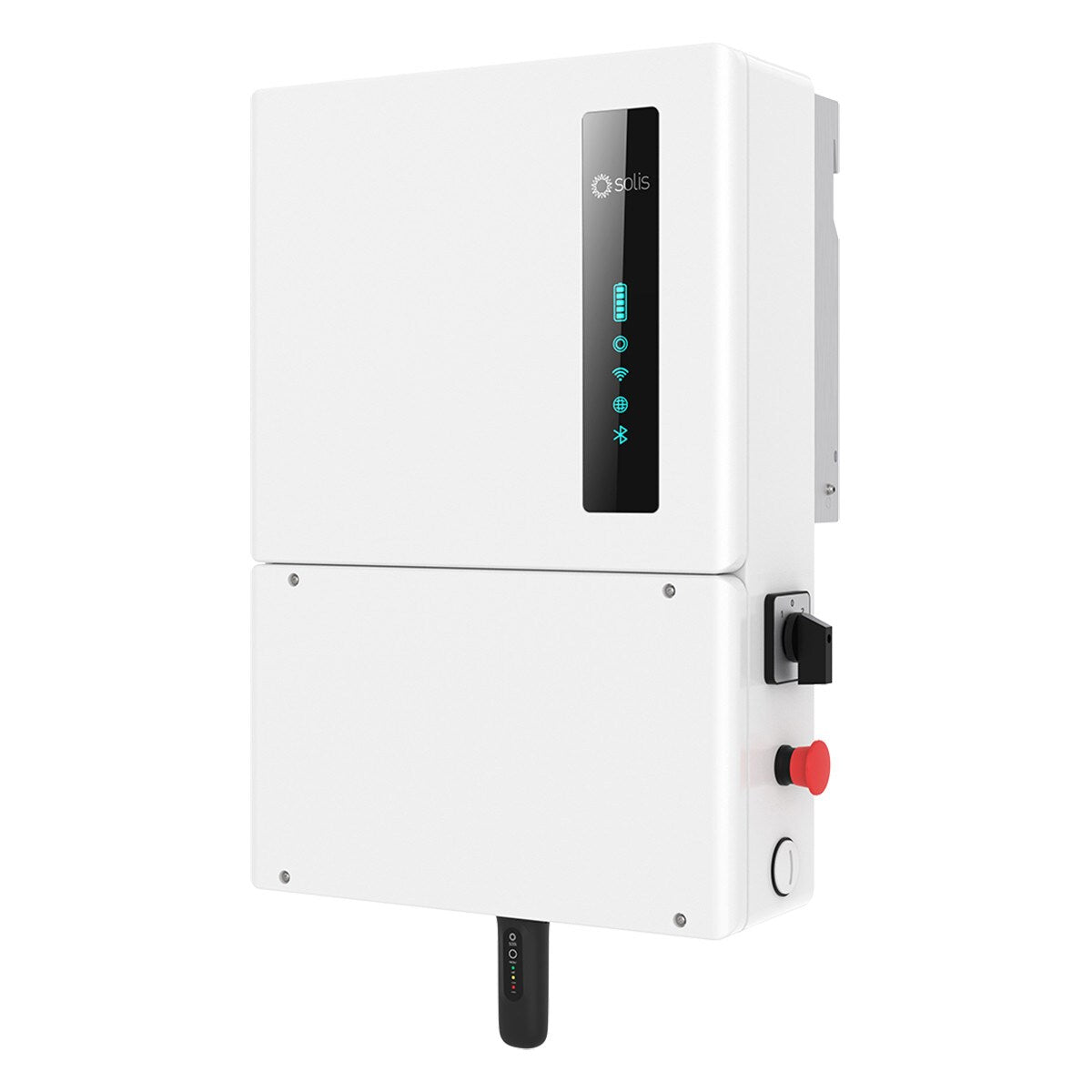

Solis S6-EH1P11.4K-H-US-APST, 11.4kW, 600Vdc, Residential Hybrid Storage Inverter
Solis S6-EH1P11.4K-H-US-APST, 11.4kW, 600Vdc, Residential Hybrid Storage Inverter
SKU: SLS-1006
Regular price
$3,522.45 CAD
Regular price
Sale price
$3,522.45 CAD
Unit price
/
per
Couldn't load pickup availability
Product Documents
Downloads
Manufacturer Part Number:
S6-EH1P11.4K-H-US-APST
Watt:
11400
Input Voltage (Vdc):
600 Volt
Output Voltage (Vac):
240 Volt
Phase:
1-phase
Inverter Type:
Hybrid
Technical Details
Efficiency (%):
97.6
S6-EH1P11.4K-H-US-APST Hybrid Inverter 11.4kW-S6-H 1ph 600Vdc; 120/240Vac 4 MPPT, w/ APS TX
The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter. This new PV / Battery inverter can be dc-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.
Warranty
Standard 10 yr warranty (UL1741SB)
Product Features
Four MPPTs allows for versatile PV array design
Maximum PV input current up to 16A per string
Transfer time is < 10ms for all backed up loads
Provides split-phase backup power without an external ATR
Third-party tested and validated for product reliability
DC to DC battery charging for optimal use of PV generated energy
Offers all of the smart inverter functions detailed in IEEE 1547-2018
Generates up to 50A/11.4kW of continuous backup power with just one inverter
NEC 2017 compliant with multiple integrated PLC transmitter options available
Utilizes an energy management system that maximizes efficiency and offers multiple operating modes
Supports generator interconnection and allows the generator to function as the grid source if utility power is lost
UL 1741 SB certified, California Rule 21 compliant
High DC:AC ratio of 1.6 for more PV power capacity
SunSpec modbus certified with the latest SunSpec models
Multiple working modes to meet different use case scenarios
Can be used for both whole-home and dedicated loads backup systems
Reverse DC polarity protection and software-based AFCI detection
Solis app allows for remote system configuration and firmware upgrading
Capable of frequency-watt control for interoperability with other smart devices
Fanless design using convection cooling for lower failure rate and complexity
UL 9540 certified with multiple battery brands to provide up to 150 kWh of storage capacity per inverter
